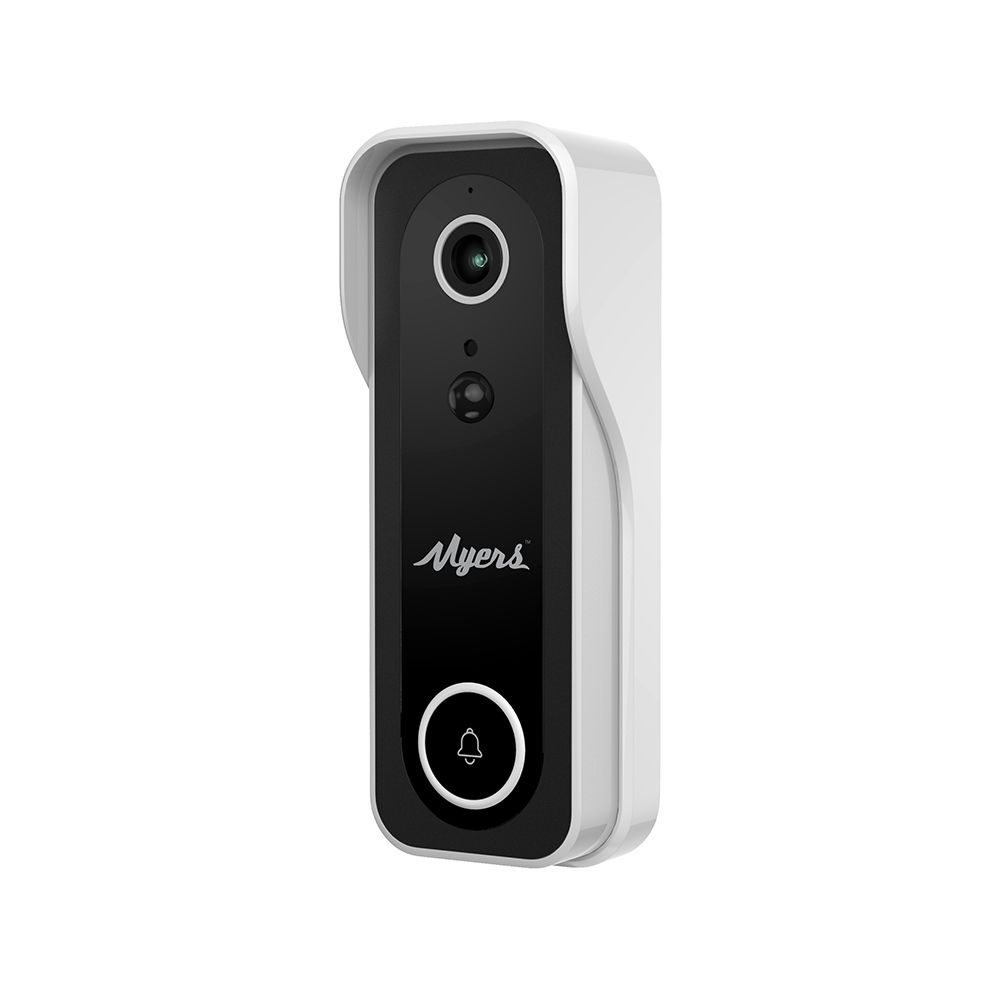

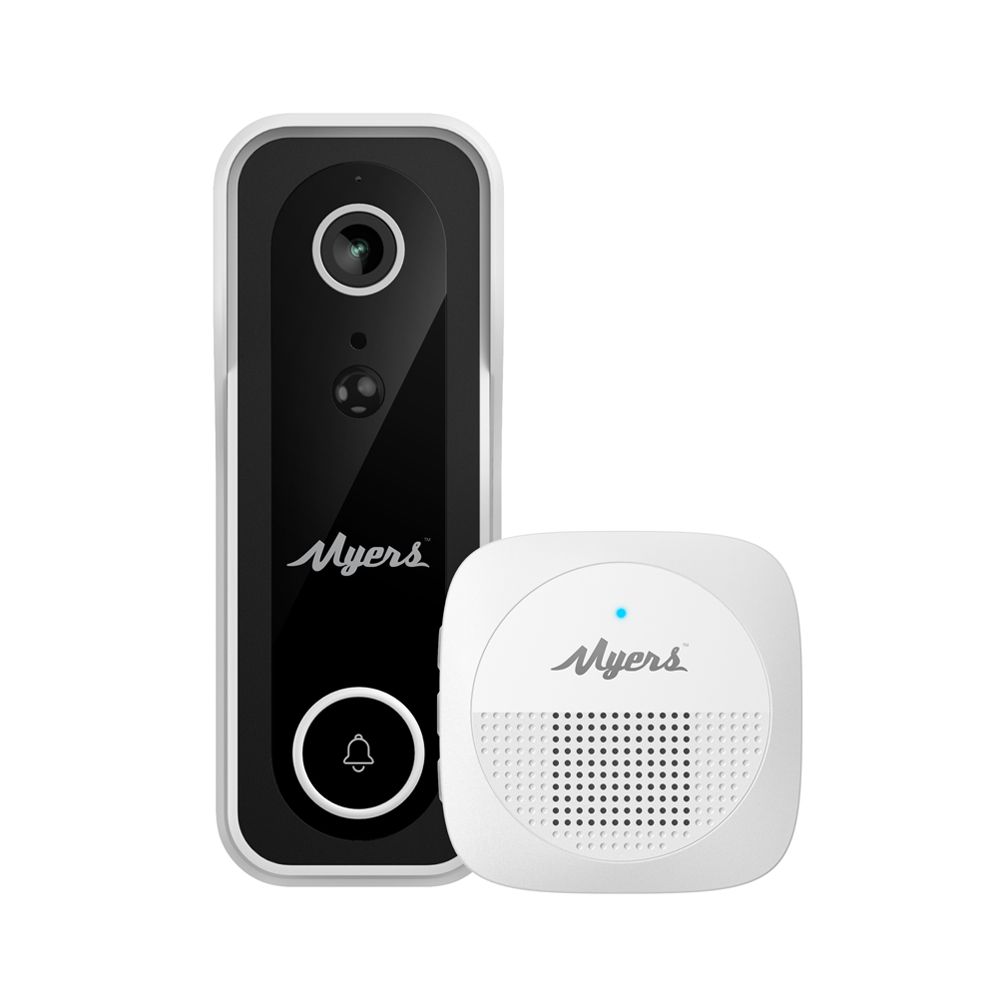

Battery doorbell kit Myers Doorbell kit
The Myers Battery Doorbell Kit is a modern wireless smart doorbell system that provides both convenience and reliable home security. The camera captures clear, detailed 4MP video while allowing two-way audio communication with visitors. Its rechargeable battery and weatherproof design make it perfect for outdoor installation without wiring. The included chime ensures you never miss a visitor, even if your phone is away.
Features:
- Wire-free installation with long-lasting rechargeable battery
- High-definition video quality for clear visitor identification
- Smart motion and human detection with instant mobile alerts
- Fast wake-up from sleep mode for quick response
- Two-way communication via built-in microphone and speaker
- Weatherproof design ensures reliable performance outdoors
- Supports local storage via microSD card or cloud backup
- Loud chime with adjustable volume and multiple ringtone options
- Stable wireless connection and wide coverage range
- Support phone remote monitoring by Partizan APP (iOS, Android)
- 34 built-in ringtones available
- Supports up to 15 doorbells
- Reliable range, up to 50 m from the transmitter
Specifications:
Product Name: Myers Doorbell Kit
Device: Dorbell
Color: White and Black
Image:
Camera sensor: 4Mp - CMOS 1/2.8”
Pixel Size: 2.7μmx2.7μm
Resolution: 2560x1440
Lens: 3.2mm
Aperture (Iris): F2.4±5%
IR Cut Filter: Auto
Sensor sensitivity: 0.1Lux
Camera view angle: 126°
Day/Night mode:
Auto: +
Color: -
Manual: +
Video recording: SD card
Encoding: H.265
Recording mode: Schedules, Manual, Motion detection
Night vision distance: 5 meters
IR LED: x4 IR LEDs, Wavelength 850nm
IR LED Beam Spread: 90°
PIR sensor: +
3D noise reduction: +
Digital Wide Dynamic Range: +
Call push notification: +
Smart Function: Human detection
Mobile application: Partizan
Audio:
Input: High sensitivity microphone
Output: Built-in speaker
Siren: Event-triggered, manual activation, unmount alert
Two-way audio: Support
Encoding: G.711 /64kbps
Power:
Power supply (not includedin the kit):
Type-C: 5V/2A
AC (screw terminal): AC 24V
Battery type, Capacity: Built-in Rechargeable, 5200mA
Power Consumption:
Wake: 190mA
Sleep: Less than 1mA
Interfaces:
Wireless: Wi-Fi 2.4GHz, 802.11b/g/n
Network address: DHCP
Memory card slot: Micro SD - up to 256GB
Controls: Call button, Reset button, On/Off button
Languages: English, Russian, Ukrainian, Czech, Danish, French, German, Hungarian, Latvian, Lithuanian, Polish, Slovenian, Spanish, Swedish, Serbian, Dutch, Estonian, Greek, Slovak, Arabic, Turkish, Hebrew, Italian, Finnish, Bosnian
Common:
Working environment: -10°C - 50°C，working humidity <95%
Housing material: Plastic, PC+ABS
Protection Class: IP65
Weight: 217g
Dimension: 48x137x25mm

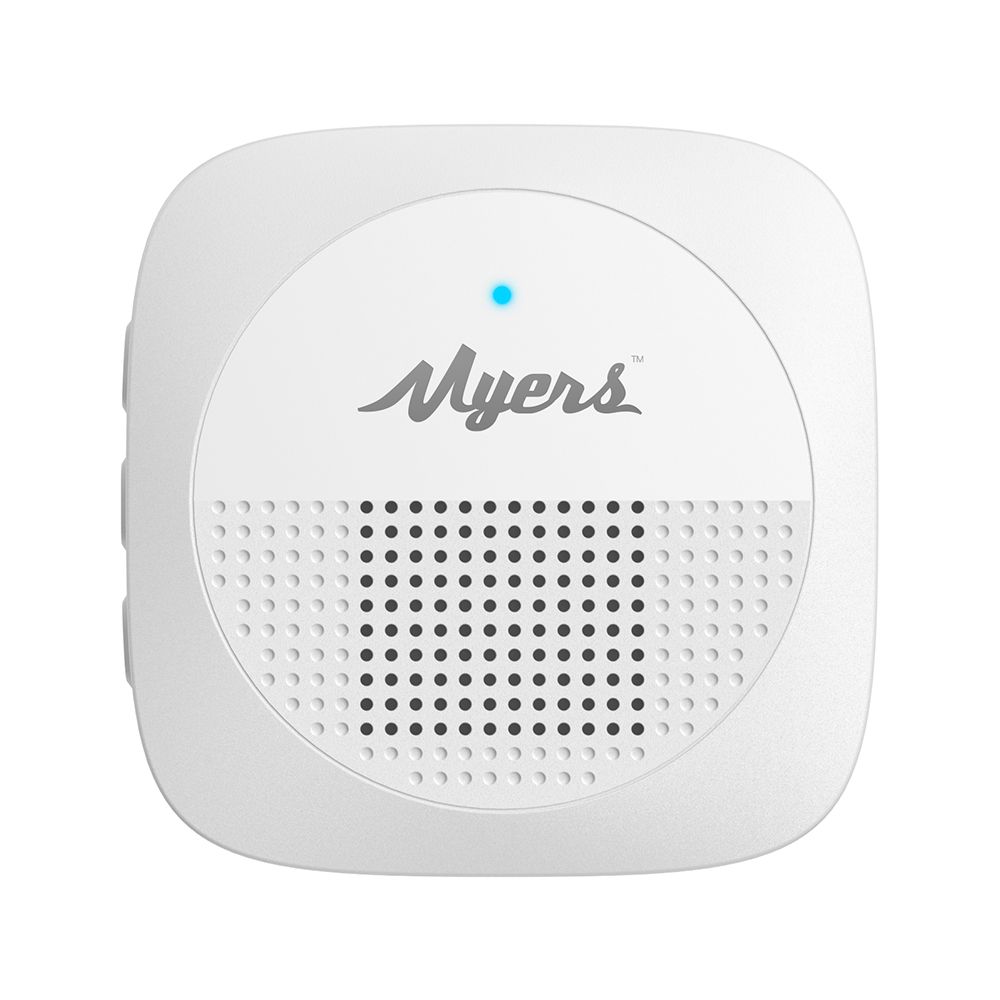

Doorbell Chime Specifications:
Product Name: Myers Doorbell Kit
Device: Doorbell Chime
Color: White
Interfaces:
Wireless: Radio, 433Mhz
Working distance: Up to 50 m (line of sight, no walls)
Number of pairings: 15 doorbells
Controls: Pairing S1, Volume S2, Select song S3
Indicator light: x1, red and blue
Number of ringtones: 34
Ringtone volume: 20-100 decibels, five-level adjustment
Common:
Power supply: 3xAAA batteries (not included)
Standby Current: 129 µA
Working temperature: -30°C to +70°C
Housing material: Plastic
Weight: 60g
Dimension: 66x66x26mm
Package Includes:
1x Myers Smart Doorbell
1x Doorbell’s Chime (3 AAA battery not included)
1x USB Type-C cable (40cm)
1x Mounting kit
