— Colour 7.0” TFT monitor
— Resolution: 1024x600
— Touch screen
— IP calling panels
— Intercom mode
— Lock control
— Mobile app support
- Description
- Related Files
- Discussion

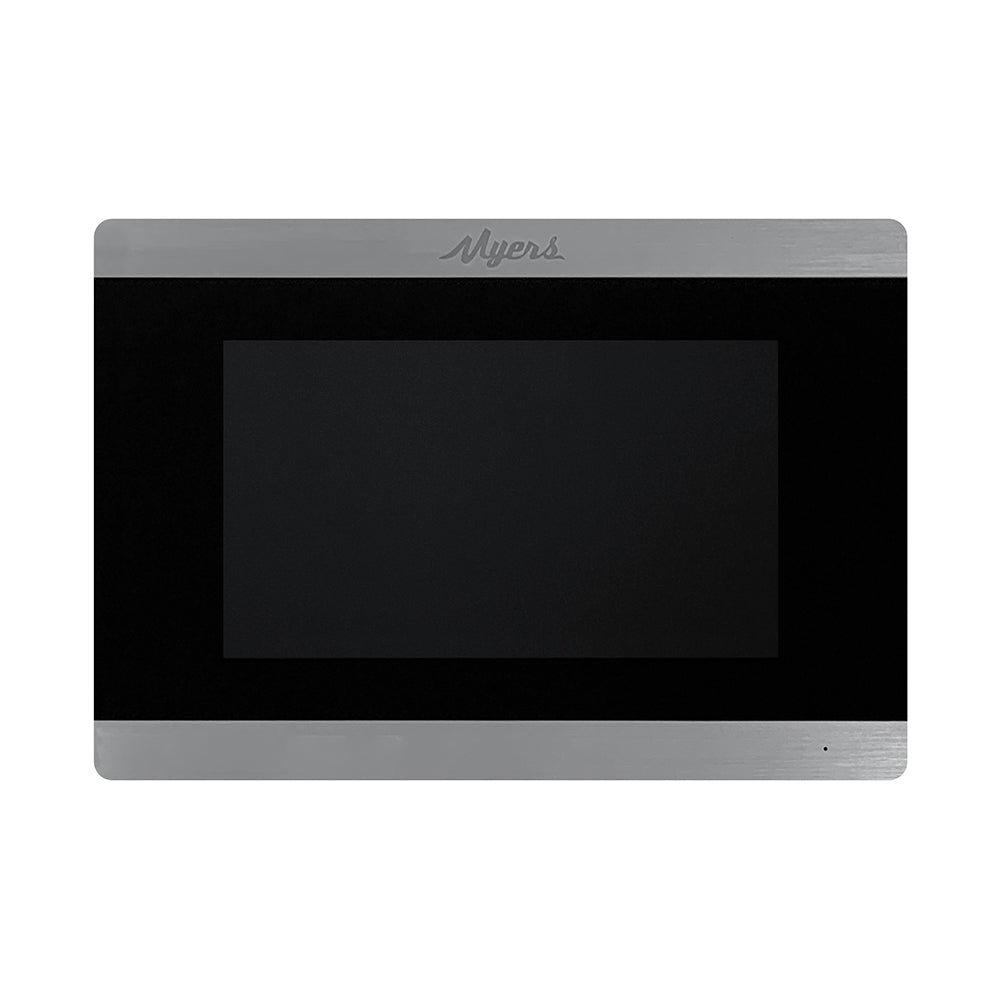

The MIP-75SD Silver Touch video doorbell with hands-free technology will not only become a reliable element of your home security, but also accentuate any interior design, even the most sophisticated. The model is equipped with a large 7-inch screen, which allows convenient viewing of videos and photos of visitors and easy management of all functions and settings of the device.
A special feature of the model is the ability to connect an additional entry panel and surveillance cameras for real-time visual monitoring of the territory of your home. To store video and photo information about your visitors' calls, the video doorman is equipped with an SD memory card slot supporting up to 32 GB (memory card not included in the standard package).
In addition to the mounting kit, the package also includes a metal bracket for securely mounting the doorman on the wall. The excellent build quality and reliable operation of the MIP-75SD Silver Touch have enabled the doorman's warranty period to be extended up to 2 years.
Main Features
Display: 7.0″ TFT Touch screen
Resolution: 1024х600
Support IP calling panels: MIP-100 Black x 6 pcs MIP-300 series x 4 pcs MIP-100MU Silver x 4 pcs MIP-100 Black x 2 pcs
Support IP cameras: 6 pcs
Supported camera type Standard ONVIF protocol, 1.0MP, H.264
Support monitor (intercom): 10 pcs
SD-card support (not included): Up to 32Gb
Recording photo/video: / (on SD card)
Size: 226x157x22 mm
Weight: 340 g
Power supply: POE (single-cable transmission of video signal and power supply) or DC 12V, 1.0A
Housing material: High-quality plastic and Metal
Operating temperature: 10 - 50 °C
Additional advantages:
— Bracket, mounting kit
— Hands-Free
— 2 years warranty
Download MIP-75SD Silver Touch Datasheets Download MIP-75SD Silver Touch Manual Attention!
- Only qualified technician should be authorized to service this equipment
- Avoid placing the device near sources of strong electromagnetic radiation.
- Do not install the device in places exposed to direct sunlight, rain, extremely high temperatures, high humidity levels, high dust levels and aggressive chemicals.
- The most appropriate place to install the device is at the level of the user's eyes.
- Prior to installation and removal of the device please make sure that the power supply is off.
- Install the device at least 30cm away from the power supply lines to avoid interference.
- Avoid ingress of moisture, foreign particles, and insects into the device enclosure.
