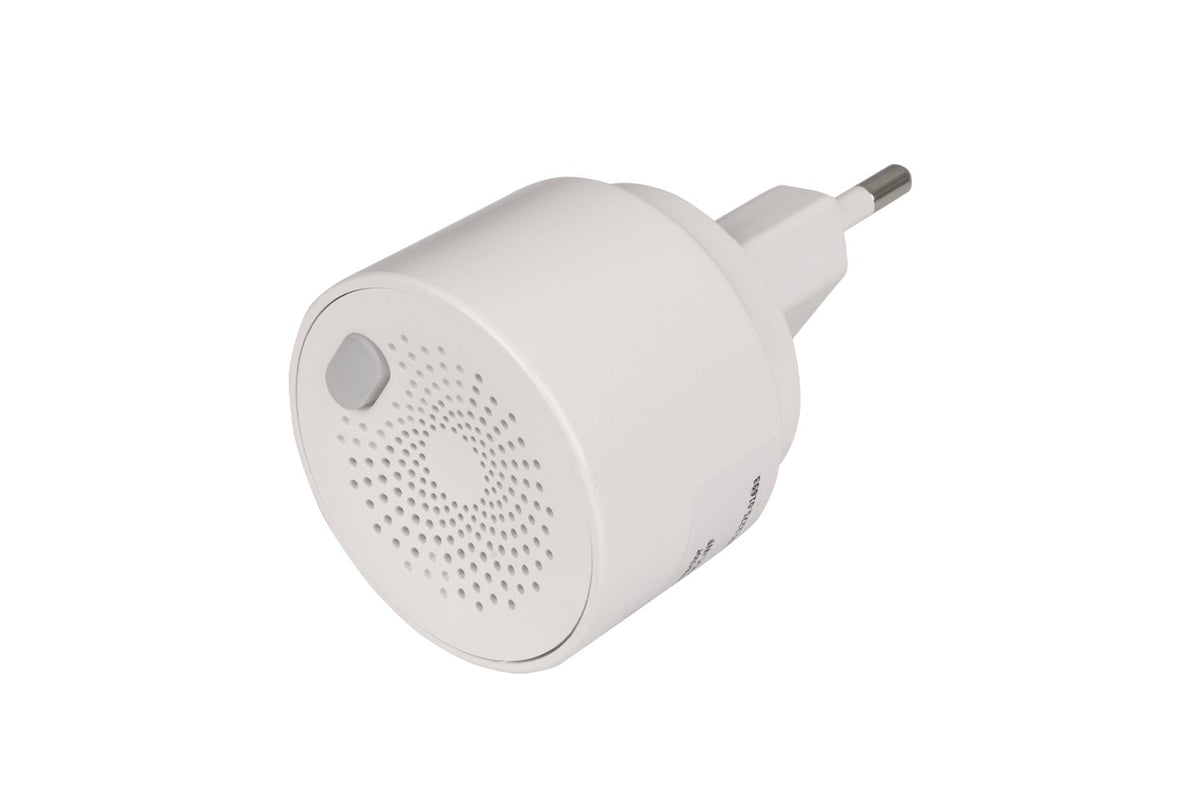

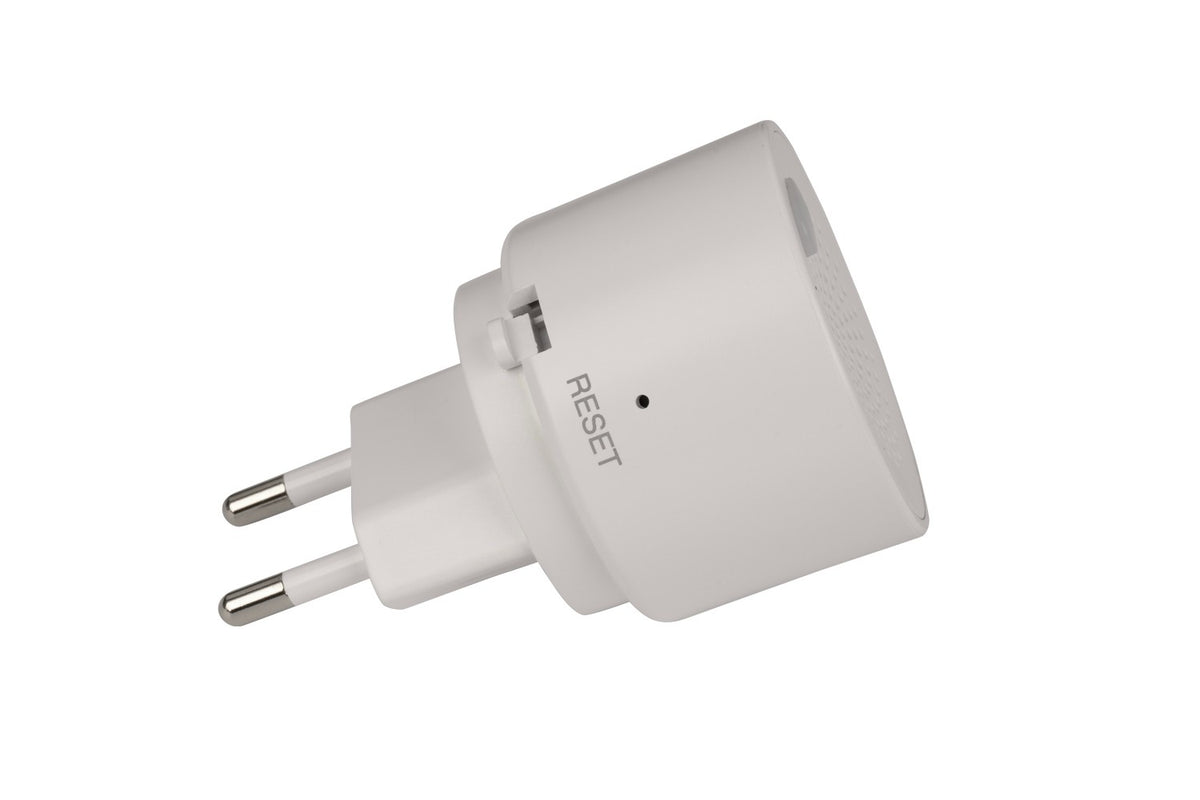

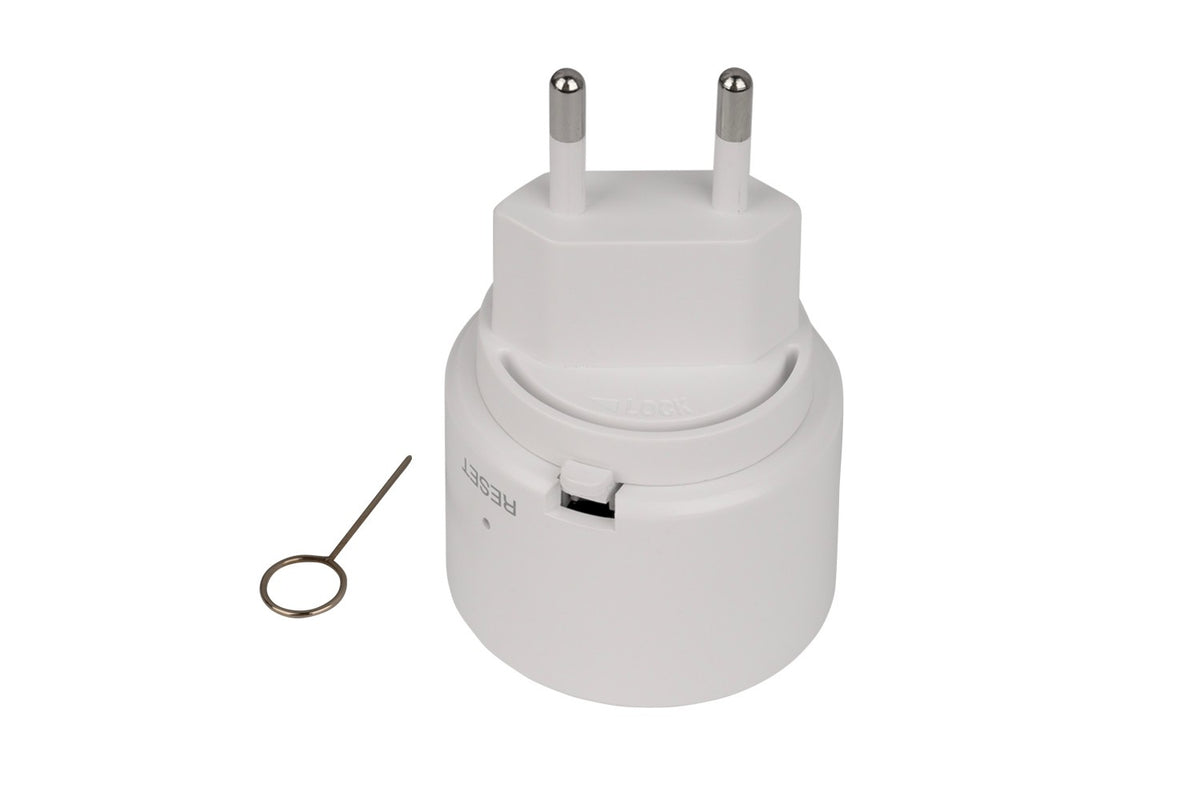

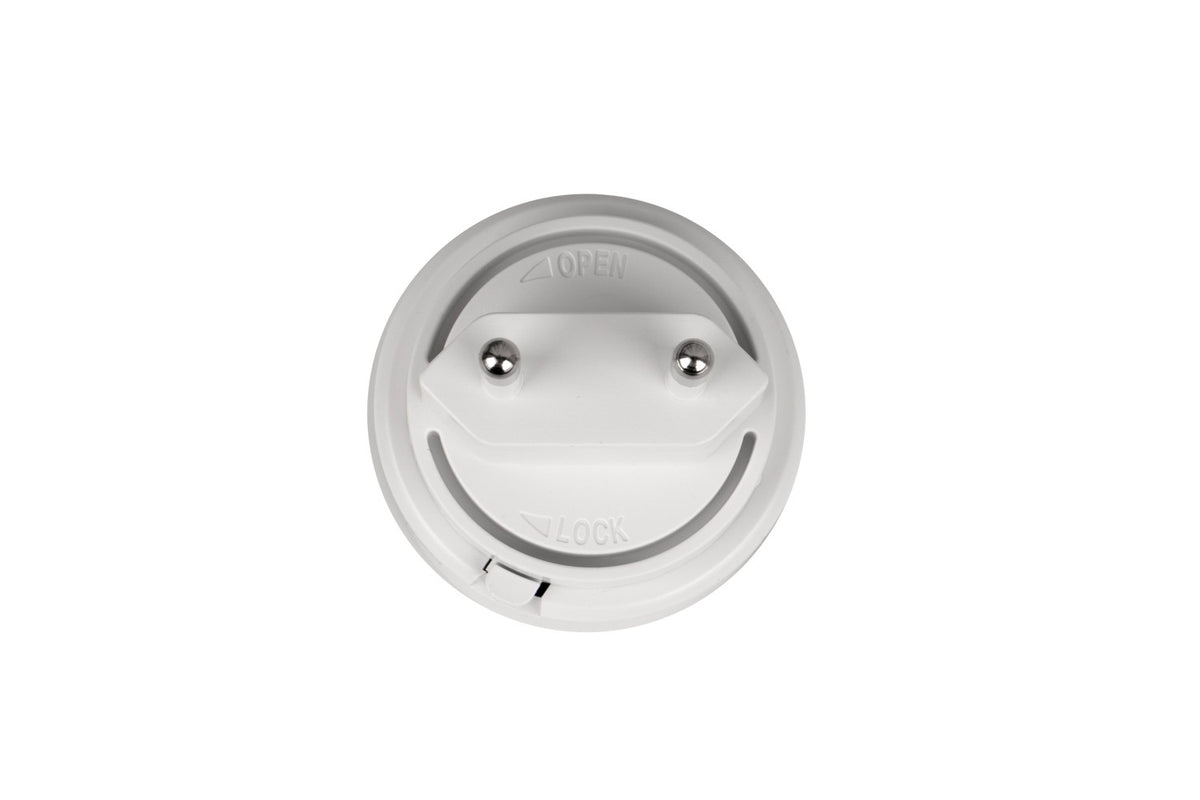

The Myers MSS-GD1-WF is a smart sensor designed for methane (CH4) gas detection, featuring Wi-Fi connectivity via IEEE 802.11b/g/n on the 2.4 GHz band. This compact device measures 75 x 48 x 48 mm and weighs 50 g, housed in a plastic enclosure.
The sensor triggers an alarm at 7% LEL ± 3% LEL for methane detection, providing sound-based alerts to notify users of gas presence. The device integrates with the Partizan mobile app for remote monitoring and management. It operates on AC power ranging from 85 to 250 V with a consumption of 1.5 W.
The MSS-GD1-WF utilizes a plug-in installation method for straightforward deployment. Operating conditions support temperatures from 0 to 40 °C and humidity levels of 20-95% RH (non-condensing), with storage temperatures between -20 and 35 °C. The product is backed by a 3-year warranty.
Product details
| Model |
MSS-GD1-WF
|
| SKU |
7936
|
Network
| Wi-Fi |
IEEE 802.11b/g/n (2.4 GHz)
|
Specifications
| Detection type |
Methane (CH4)
|
Alarm specifications
| Alarm set value |
7% LEL ± 3% LEL (CH4)
|
| Alarm sound |
≥ 70dB
|
| Alarm mode |
Sound
|
