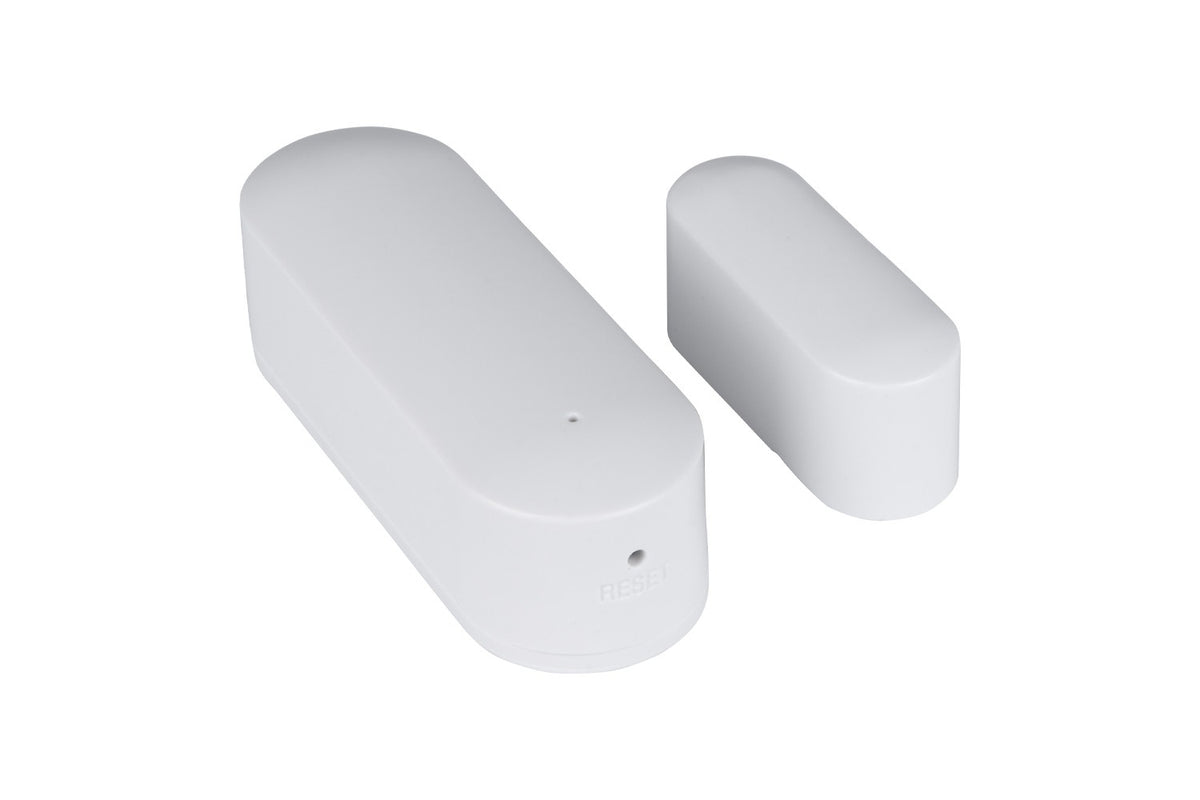

The Myers MSS-MS3-WF is a smart sensor designed for wireless connectivity and remote monitoring applications. This device operates on IEEE 802.11b/g/n Wi-Fi at 2.4 GHz and is compatible with the Partizan mobile app for convenient control and management.
The sensor features a magnetic sensing distance of 15 and is housed in a durable plastic enclosure. With compact dimensions of 70 x 25 x 20 mm and a weight of 51 g, the MSS-MS3-WF offers a space-efficient design suitable for various installation scenarios.

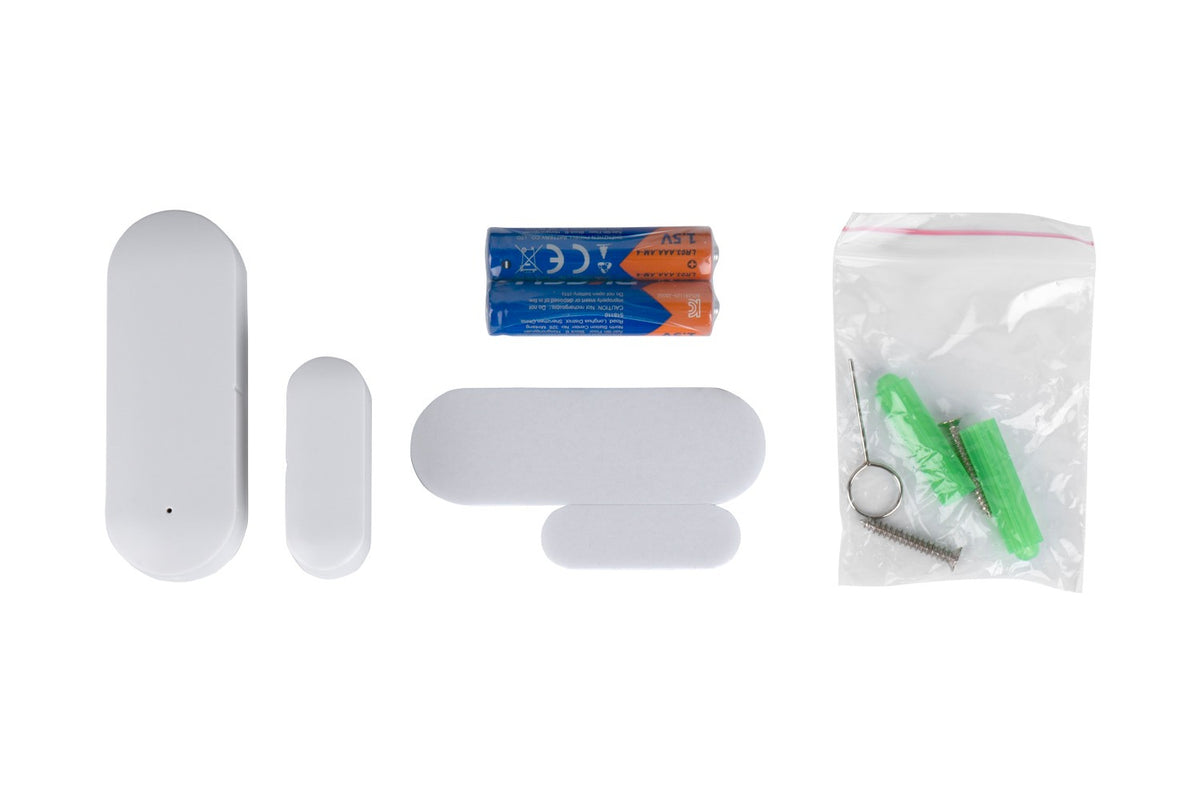

The device is powered by two LR03 (AAA) batteries with a 3 V DC power source, featuring an idle current of 40 and peak current of 100, with low battery voltage alert at 2.4 V. It operates within a temperature range of -20 to 40 °C and humidity levels of 20-95% RH non-condensing, with storage temperature rated from -30 to 50 °C. The product is backed by a 3-year warranty.
Product details
| Model |
MSS-MS3-WF
|
| SKU |
7931
|
Network
| Wi-Fi |
IEEE 802.11b/g/n (2.4 GHz)
|
Electrical specifications
| Idle current |
≤ 40 μA
|
| Peak current |
≤ 100 mA
|
| Low battery voltage |
≤ 2.4 V
|
Mechanical specifications
| Magnetic sensing distance |
… |
