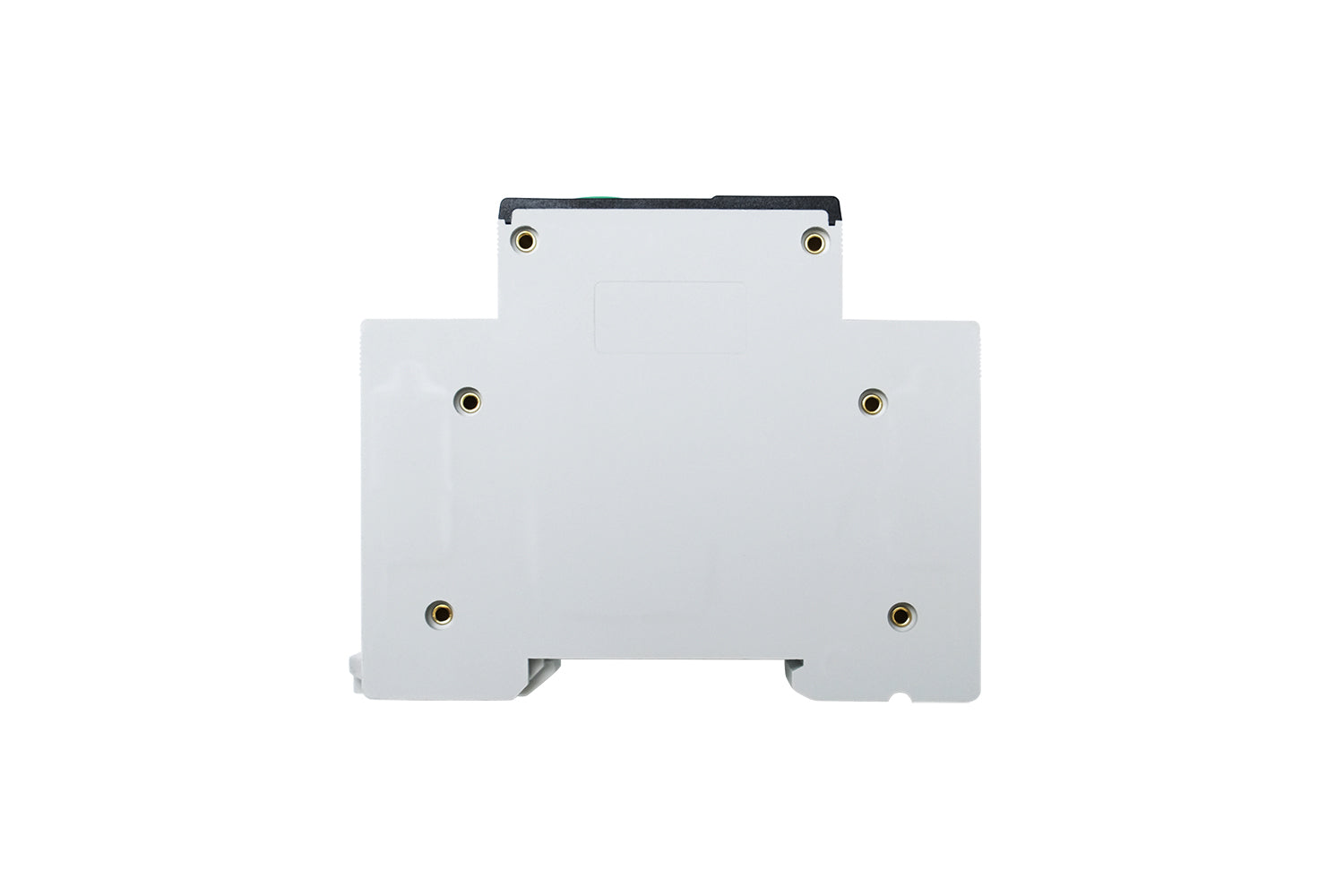

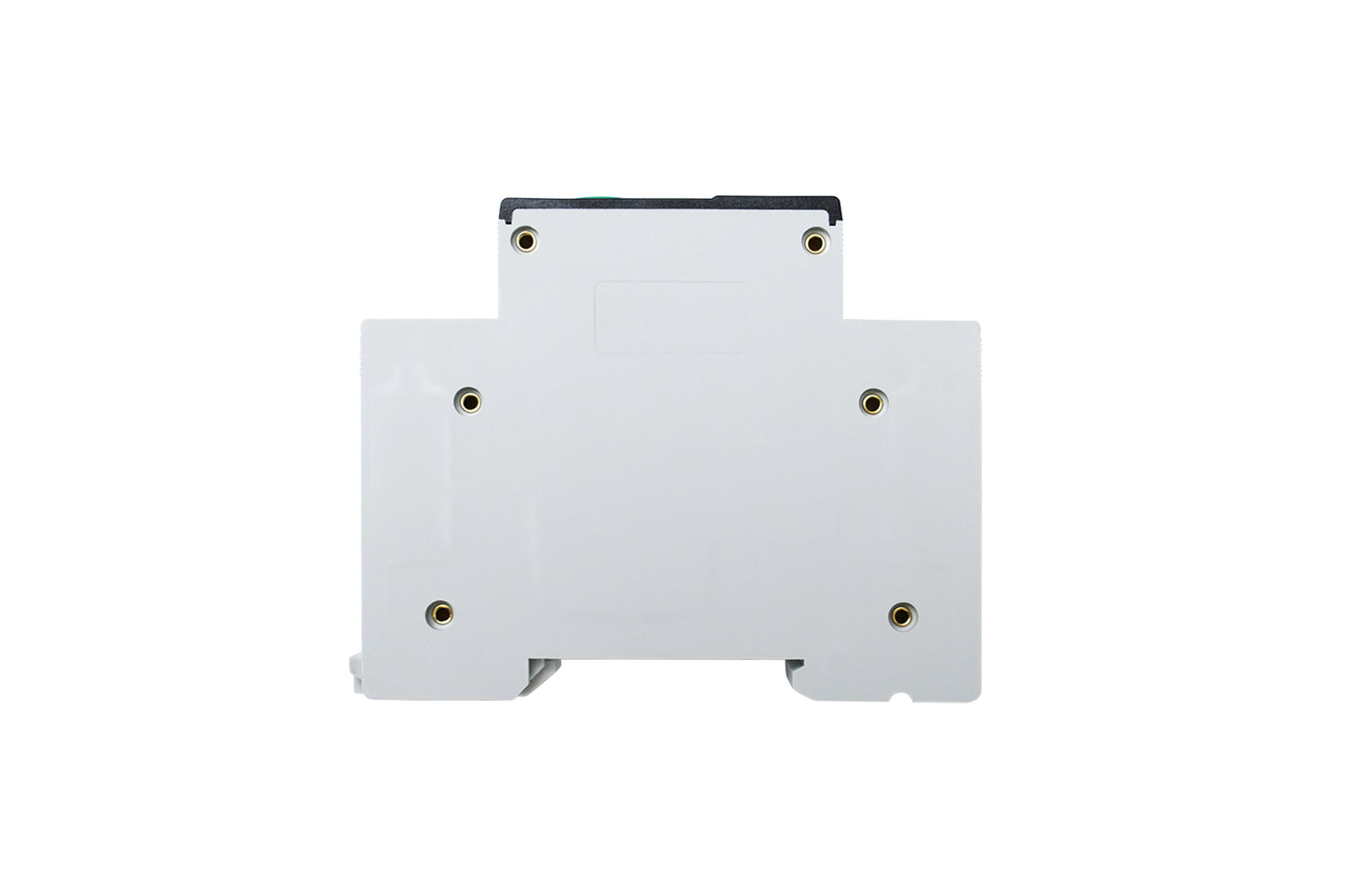

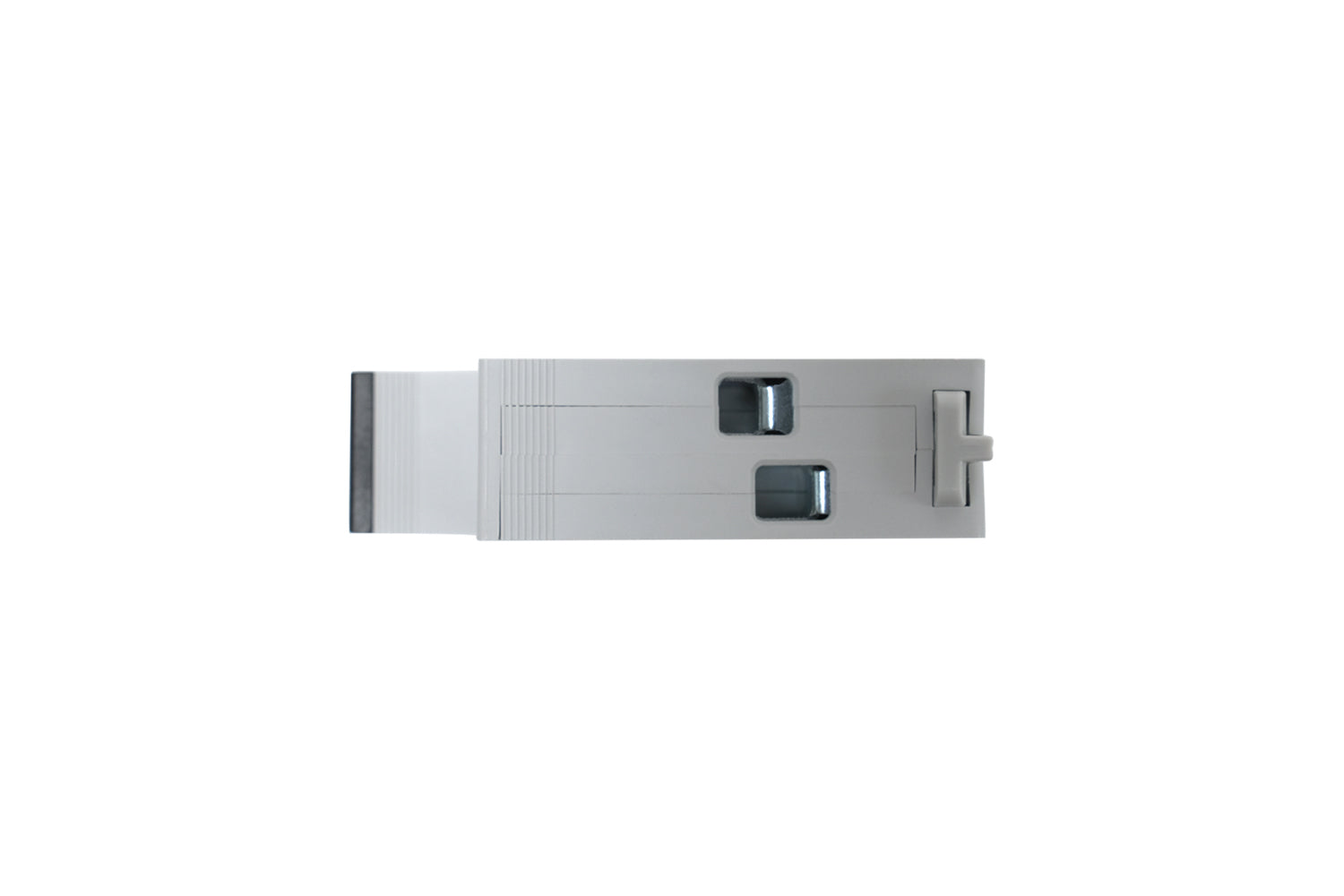

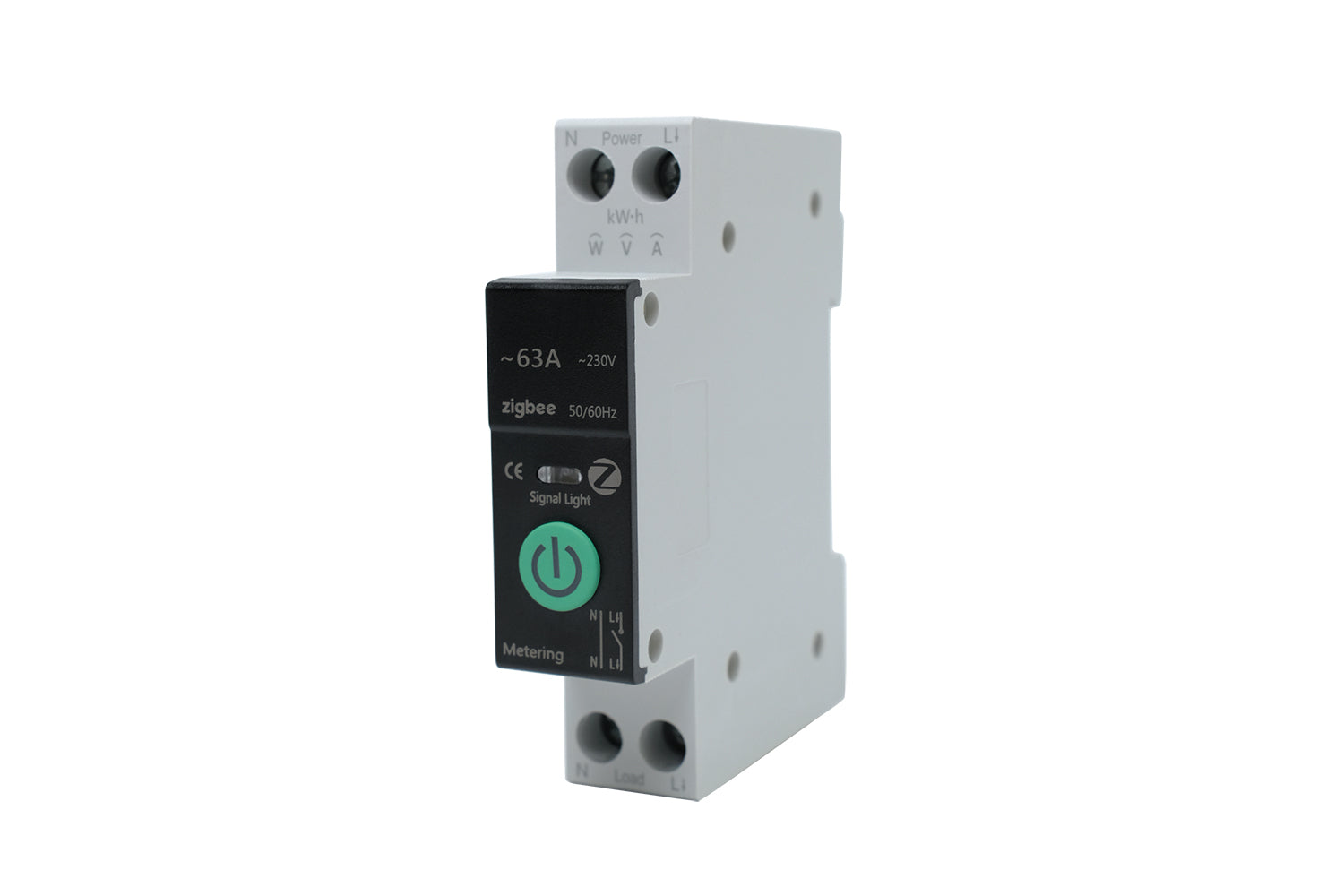

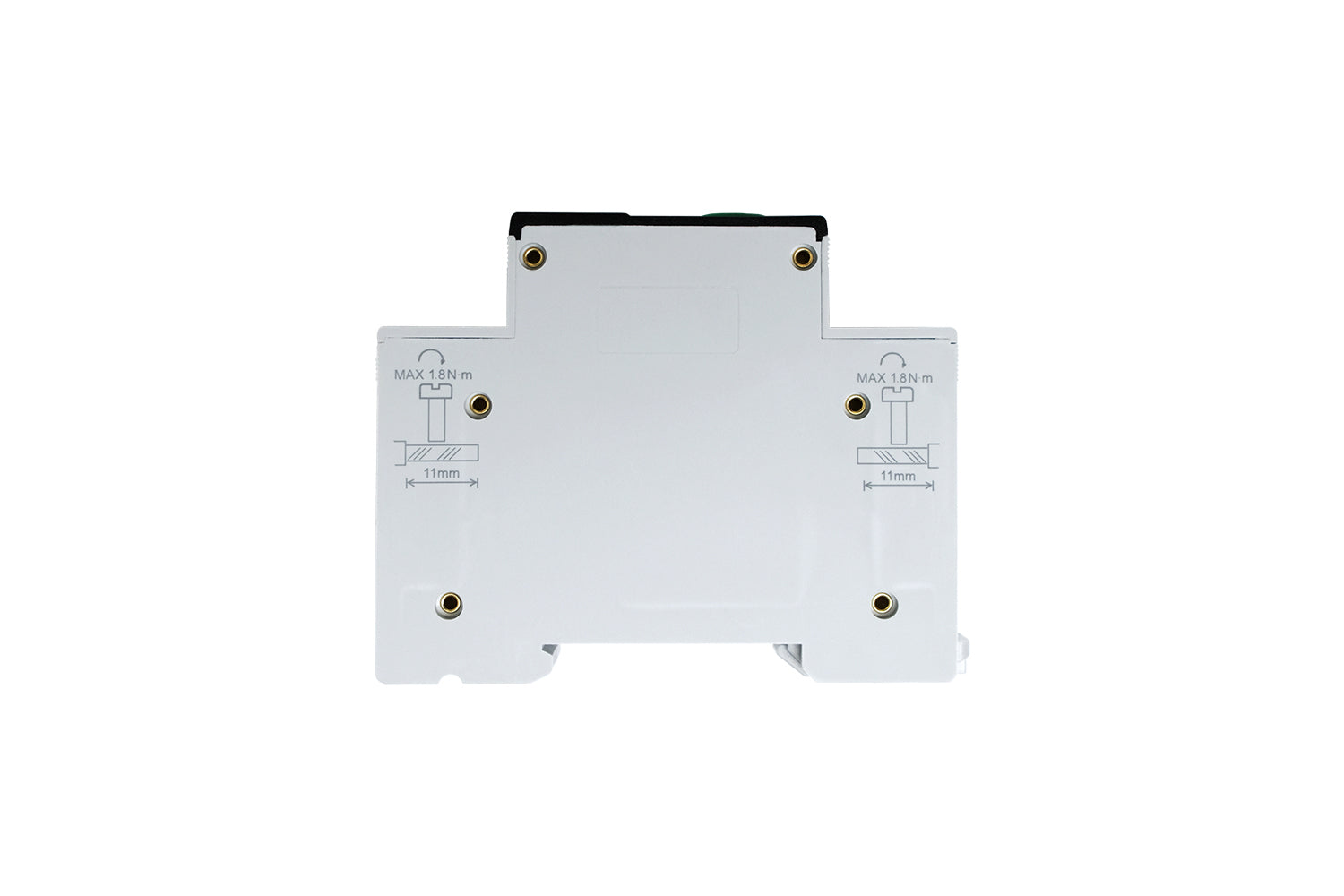

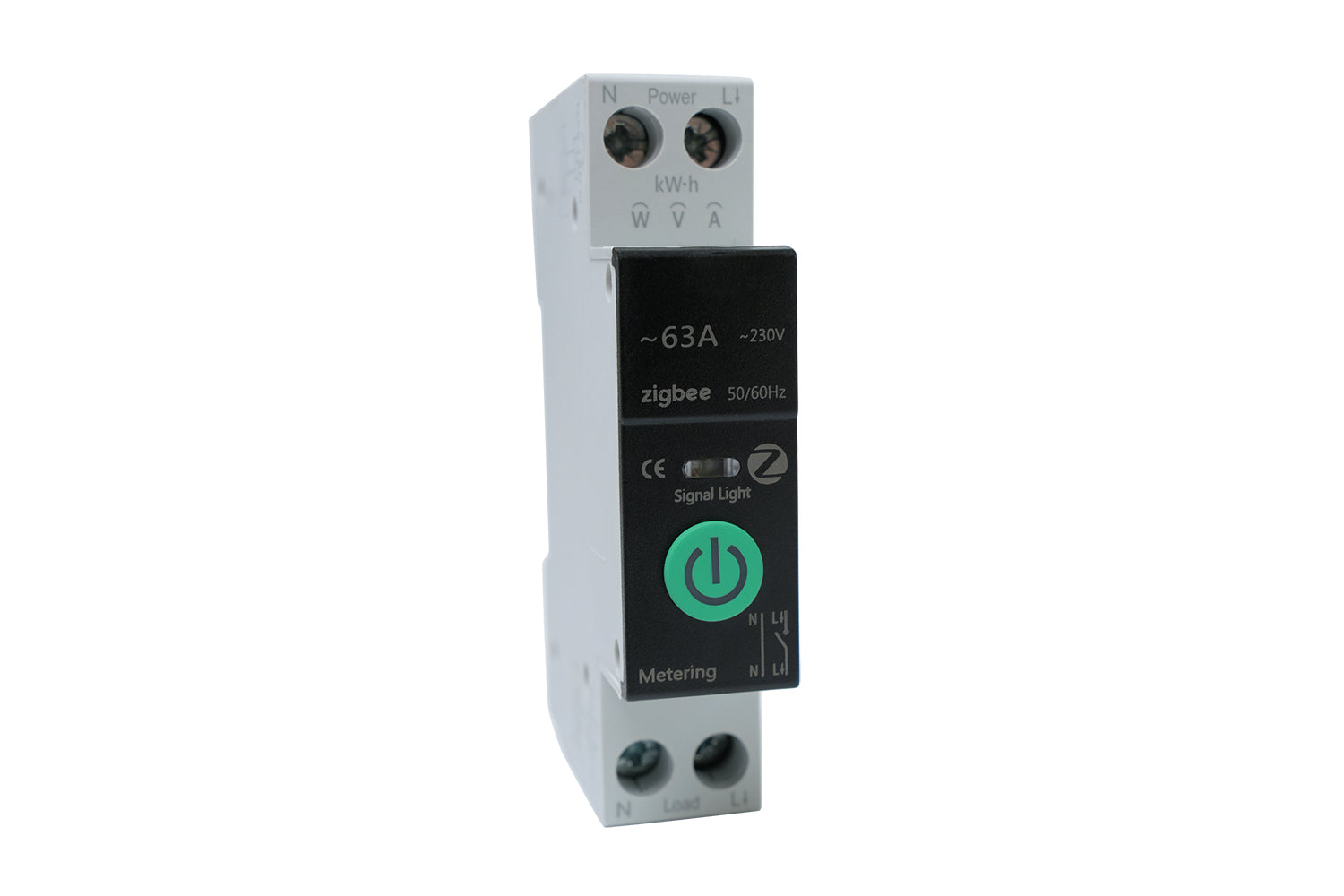

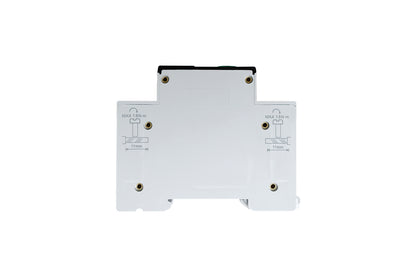

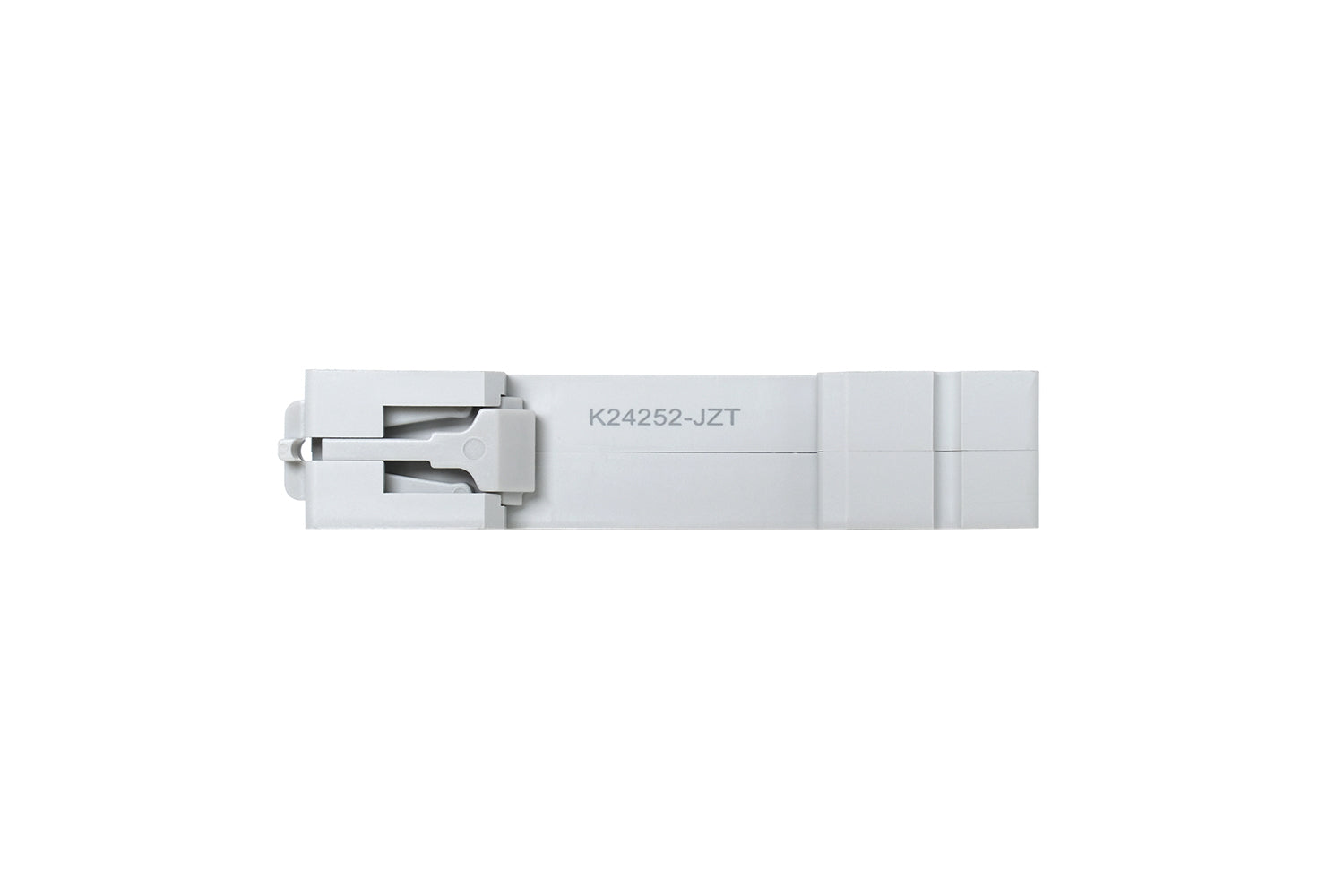

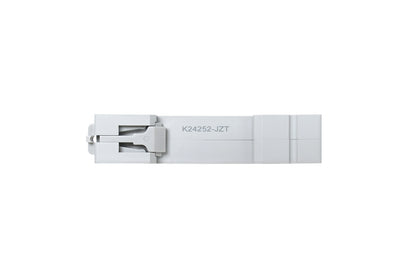

Intelligent relay MSR220-1 DIN ZB
Compact single-channel smart relay for DIN rail mounting, designed for convenient remote control and automation of electrical equipment. It operates via ZigBee using the MSH-ZB hub, allowing integration into a smart home system.
Features:
- Wireless control via ZigBee protocol (requires MSH-ZB hub)
- One relay with load capacity up to 63 A
- Support scheduling, sunrise/sunset automation and scene creation
- Suitable for lighting, irrigation systems and household appliances
- Remote control via the Partizan mobile app (iOS, Android)
- Fireproof PC V0 housing for safety
- Wide operating temperature range from 0°C to +80°C
Specifications:
Wireless protocol: ZigBee via MSH-ZB HUB
Number of relays: 1
Input/output voltage: AC 90~250 V, 50/60 Hz
Maximum load: 63 A
Dimensions: 68 × 18 × 82 mm
Weight: 97 g
Operating temperature: 0 °C ~ +80 °C
Material: PC V0 non-flammable
Software support: Partizan (iOS, Android)
Package includes:
1x intelligent power relay MSR220-1 DIN ZB
