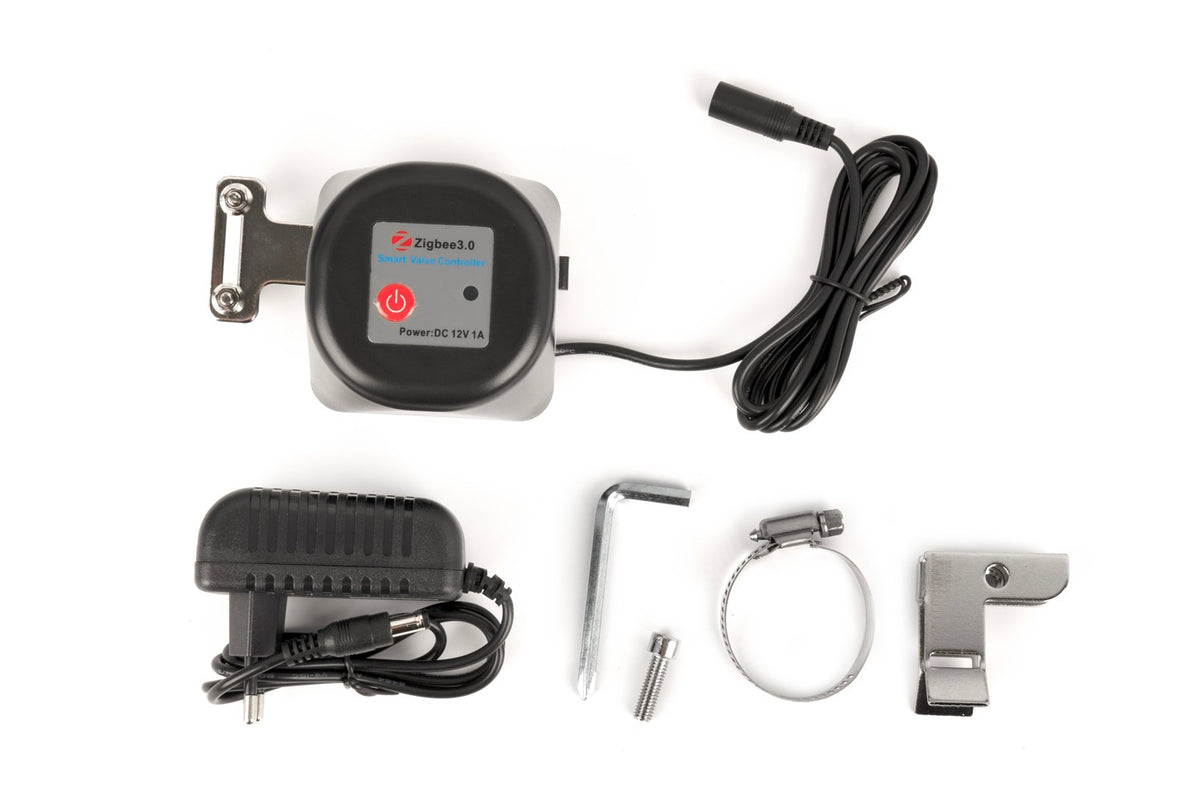

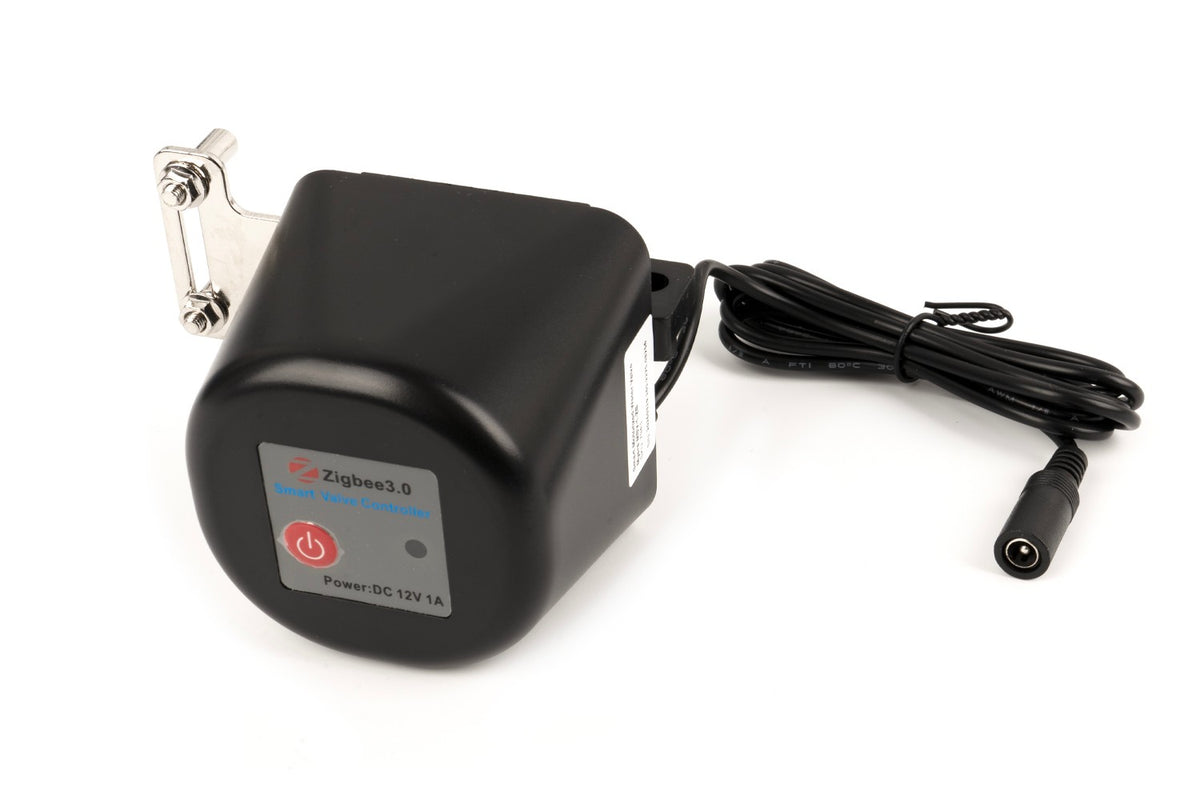

The Myers MSV-1-ZB is a smart sensor device designed for valve control applications. This Zigbee-enabled unit operates on the IEEE 802.15.4 standard and is compatible with the Partizan mobile app for remote management.

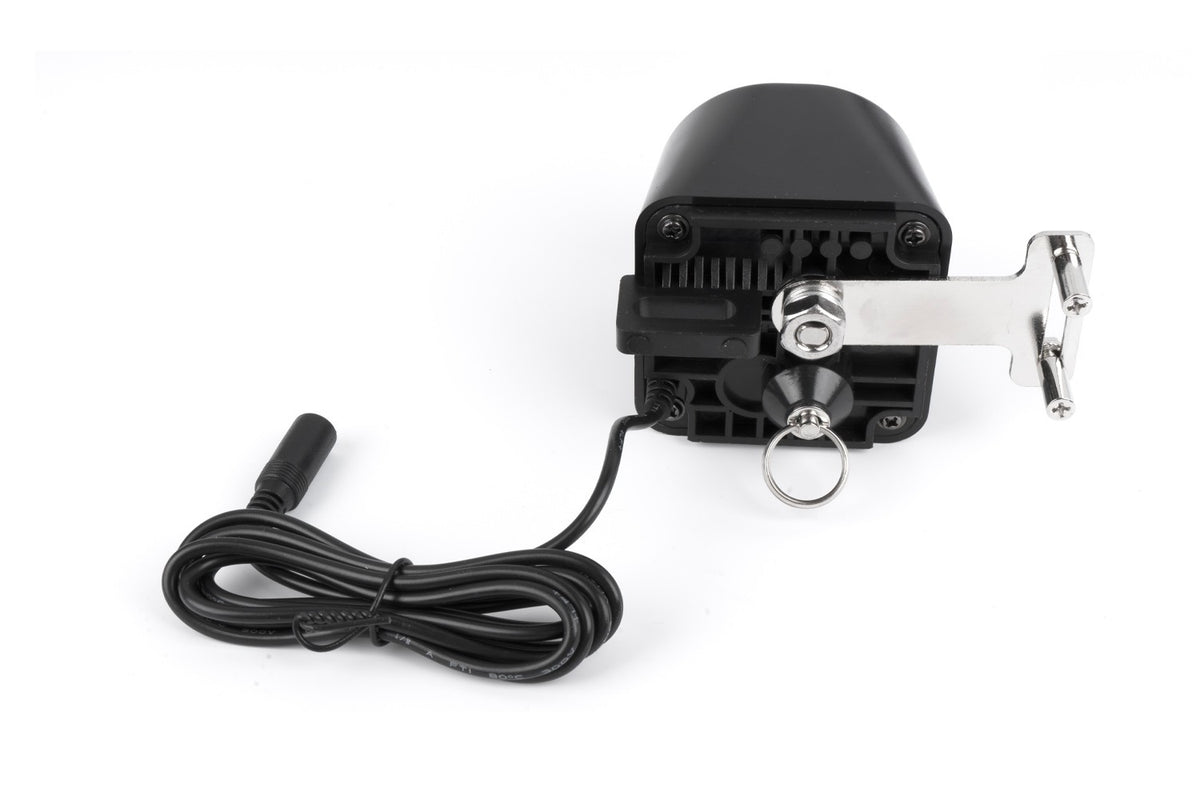

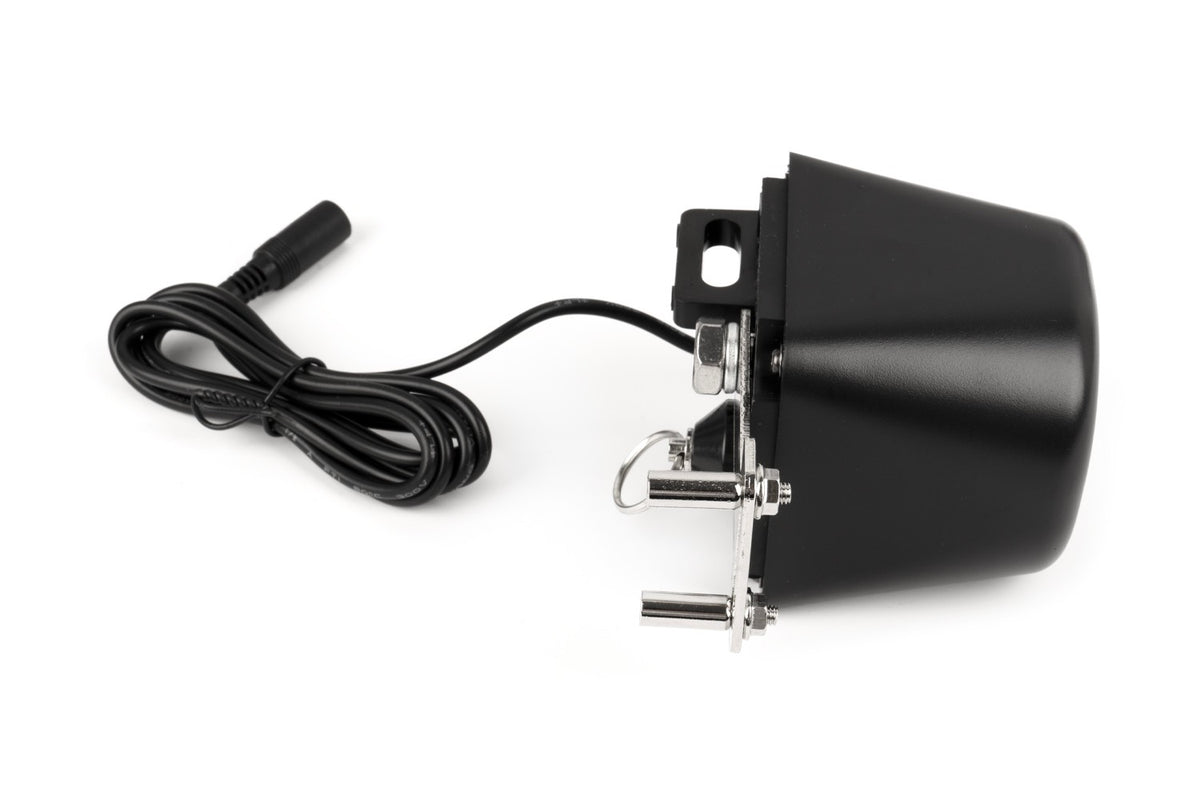

The MSV-1-ZB features a handle-type valve mechanism supporting multiple valve sizes including 1/2, 3/4, 1, and 1.25 inch configurations. The device is constructed with a plastic housing and has dimensions of 70 x 70 x 60 mm with a weight of 331 grams.
The unit requires a 12V DC power source with a consumption of 1000 mA. It operates within a temperature range of 0 to 40°C and humidity range of 20-95% RH non-condensing, with storage temperature tolerance from -30 to 50°C. The product is backed by a 3-year warranty.
Software
| Mobile app |
Partizan
|
| Sensors (important note) |
This device uses Zigbee technology and must be paired with the Myers Zigbee HUB. It does not support direct Wi-Fi or standalone app connection.
|
Network
| Zigbee standard |
IEEE 802.15.4
|
Valve specifications
| Pressure |
1.6 MPa
|
| Torque |
30 - 60 kgf·cm
|
| Valve size |
1/2",
3/4",
1",
…
|
