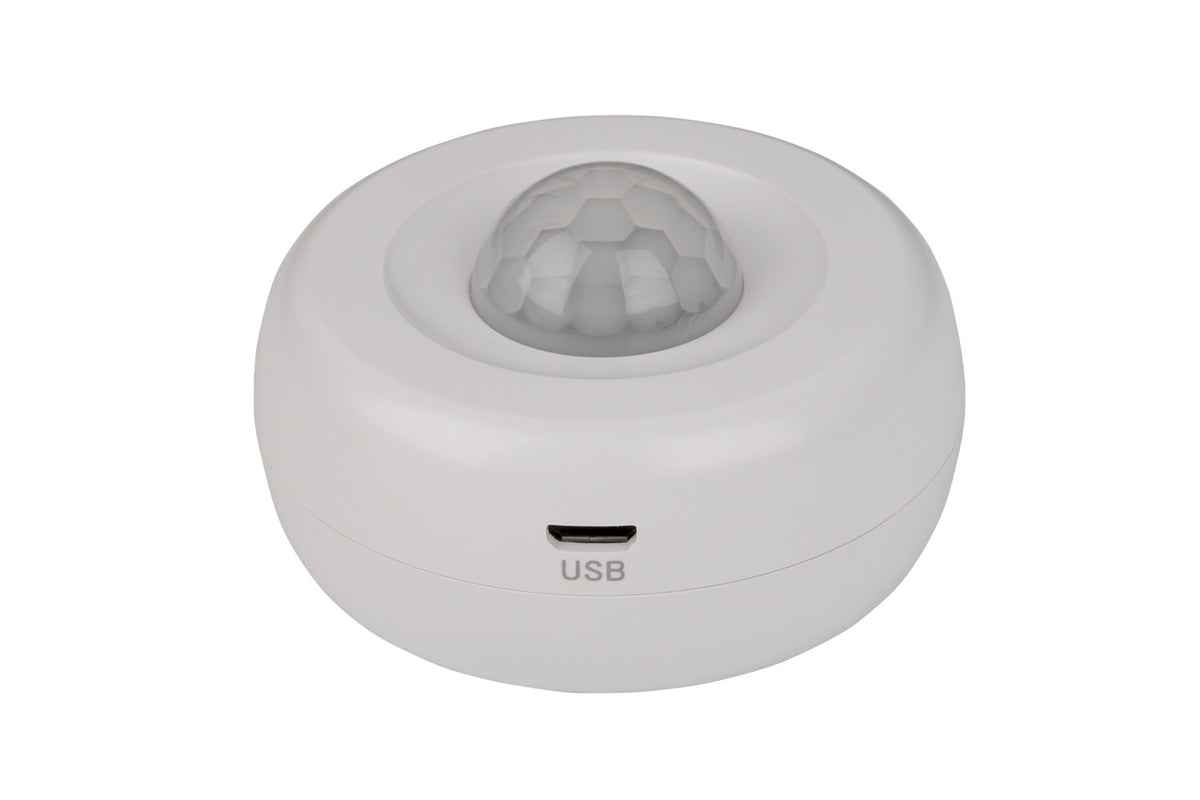

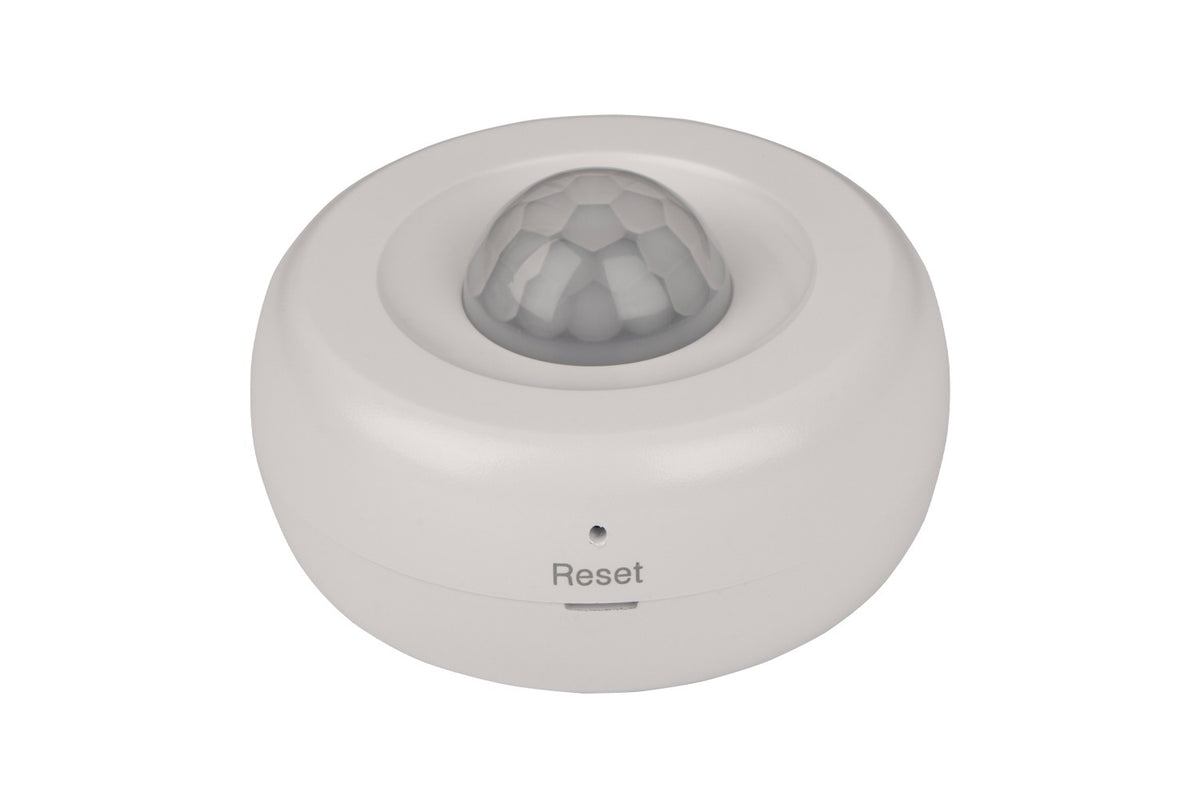

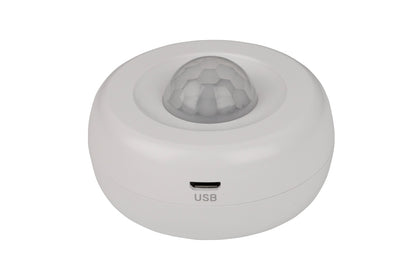

The Myers MSS-PIR1-ZB is a smart home PIR motion sensor featuring Zigbee wireless connectivity based on the IEEE 802.15.4 standard. This compact device operates on the 2.400 GHz to 2.484 GHz frequency band and is managed through the Partizan mobile app.

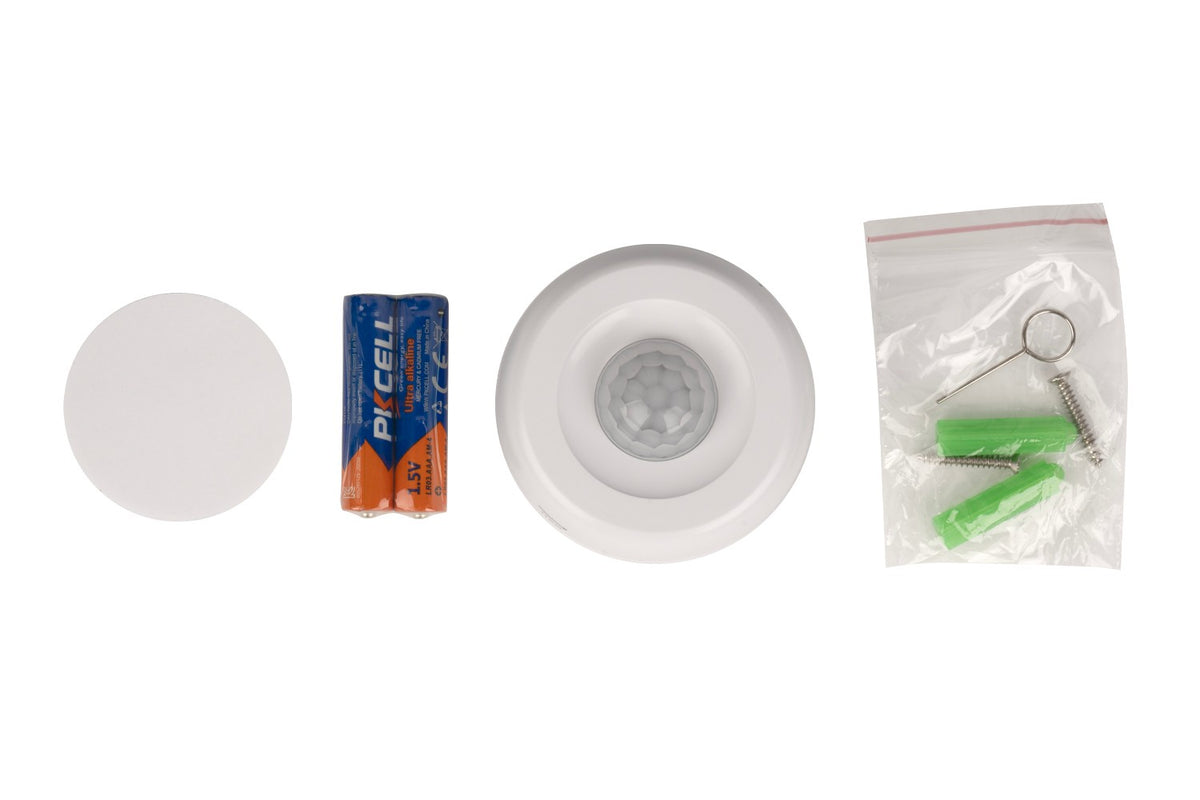

The sensor provides a detection distance of 6 and offers a 360-degree detection angle when ceiling-mounted. Installation options include both ceiling and wall mounting configurations. The device is powered by two LR03 (AAA) batteries, with a low battery voltage threshold of 2.4. Electrical characteristics include an idle current of 35 and continuous current of 15.
The MSS-PIR1-ZB features a plastic housing with dimensions of 65 × 60 × 34 mm (or 60 mm diameter × 34 mm height) and weighs 56 grams. The sensor operates within a temperature range of 0 to 40°C and humidity range of 20-95% RH non-condensing, with storage temperature between -20 and 35°C. The product is backed by a 3-year warranty.
Product details
| Model |
MSS-PIR1-ZB
|
| SKU |
7934
|
Software
| Mobile app |
Partizan
|
| Sensors (important note) |
This device uses Zigbee technology and must be paired with the Myers Zigbee HUB. It does not support direct Wi-Fi or standalone app connection.
|
Network
| Zigbee standard |
IEEE 802.15.4
|
| Zigbee frequency |
2.400 GHz – 2.484 GHz
|
Electrical specifications
| Idle current |
≤ 35 μA
|
| Continuous current |
≤ 15 mA
… |
