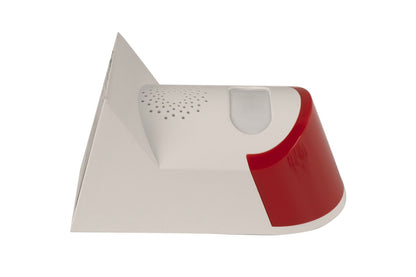

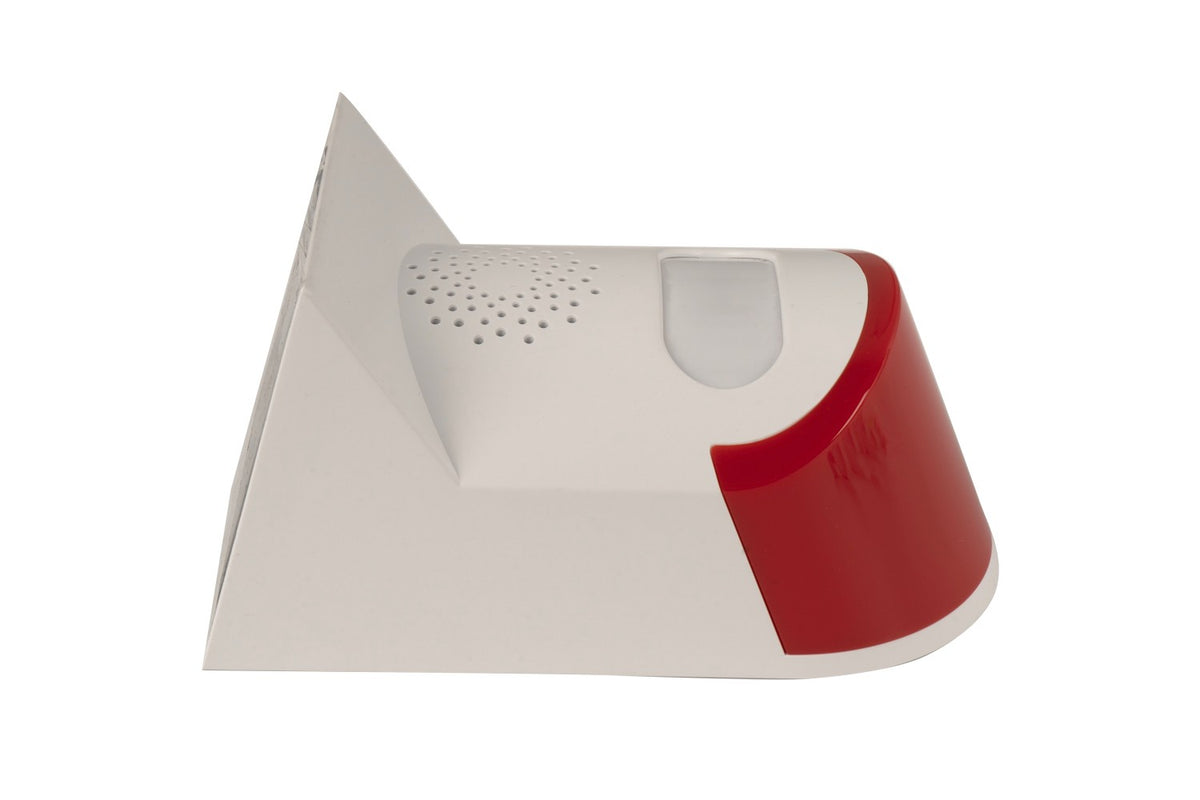

The Myers MSS-AK-WS1 is a smart siren designed for detection and alarm applications. This device operates on 433 radio frequency with a transmission distance of 80 and features a detection distance of 6 with a 110-degree detection angle when wall-mounted. In addition to its built-in sensor, the device can also serve as a central hub, pairing with up to 8 remote controls and organizing connected door and motion sensors into up to 4 independent zones.
The sensor provides dual alarm modes including sound and flash alarm capabilities, with an alarm sound output of 110. It utilizes a plastic housing and offers wall installation mounting. The unit operates with an idle current of 80 and peak current of 380, powered by a LiPo 3.7V battery with 600 capacity.
The MSS-AK-WS1 measures 139 x 74 x 74 and weighs 203. It functions within an operating temperature range of -20 to 40°C and humidity range of 20-95% RH non-condensing, with storage temperature tolerance from -30 to 50°C. The product includes a 3-year warranty.
Product details
| Model |
MSS-AK-WS1
|
| SKU |
7955
|
Specifications
| Radio frequency |
433 MHz
|
| Transmission distance |
80 m
|
Electrical specifications
| Idle current |
≤ 80 μA
|
| Peak current |
≤ 380 mA
|
Alarm specifications
| Alarm sound |
≥ 110 dB
|
| Alarm mode |
Sound,
…
|
