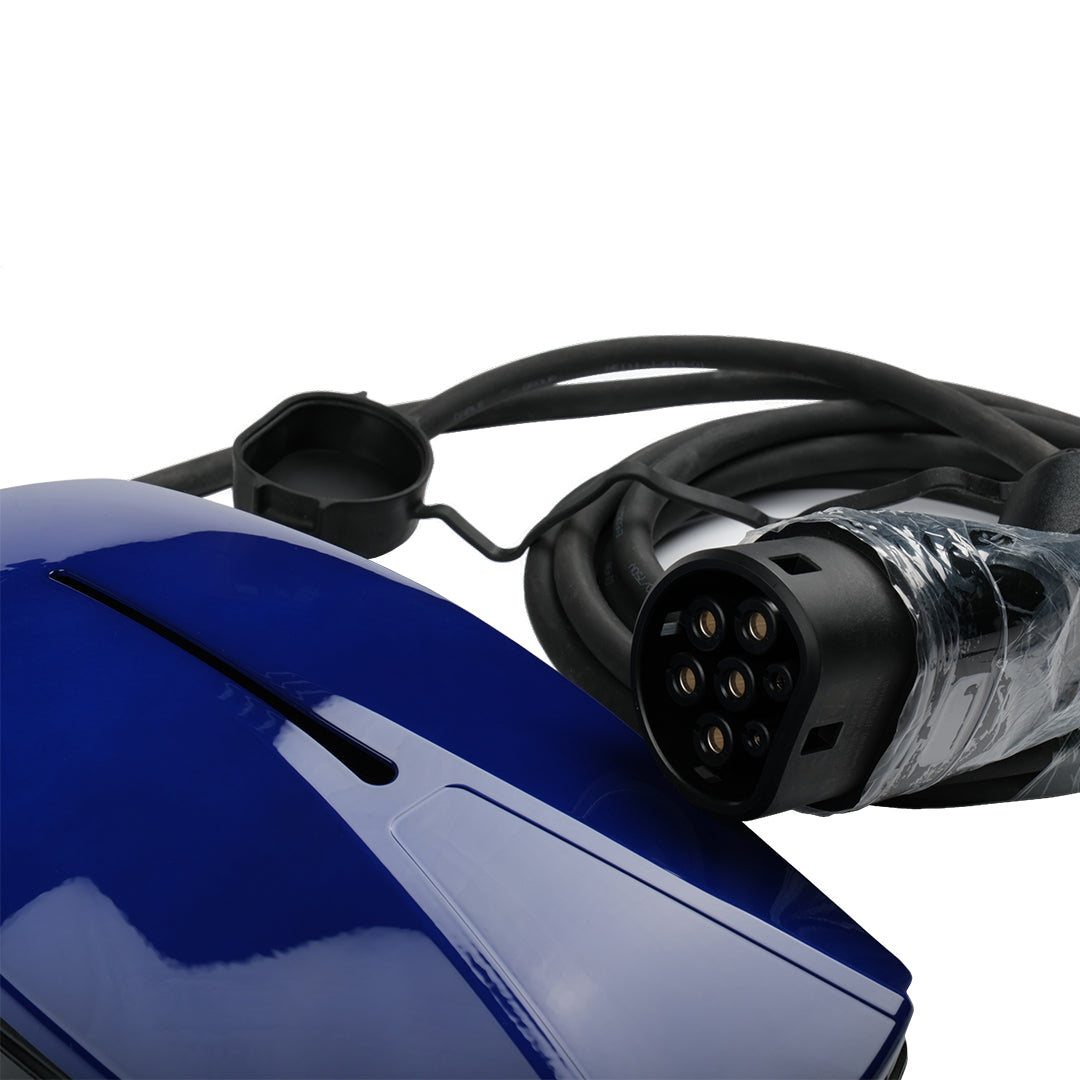

Elvix WBAC 4966 T2 1 cable 11KW 5M RFID APP
The Elvix WBAC 4966 T2 is a universal AC wall charger designed for efficient charging of electric vehicles, offering a maximum output of 11 kW. Thanks to the type 2 connector and 5 m cable, it supports a rated current of 32 A. The charger includes an RFID reader for secure access and supports the "TUYA" mobile app.
Specifications:
Type 2 connector.
Input voltage: 3-phase AC 380 V
Rated current: 32A
Waterproof: IP65
Impact protection: IK08
Surface finish: Car paint level with anti-UV coating
Display: luminous
Certification: CE, UKCA, IEC, TUV, CB
Cable length: 5 m
Leakage current protection: Type B (30mA + DC6mA)
Connection: 2 swipe cards + mobile app "TUYA"
Communication protocol: OCPP 1.6J, Ethernet/Wi-Fi
RS485 Pre-drilled integrated main board
Panel color: blue
Size: 31x17x11 cm
Weight: 3.3 kg
Package includes:
1x charger
1x charging cable
1x connector holder
1x Mounting bracket
1x set of screws
