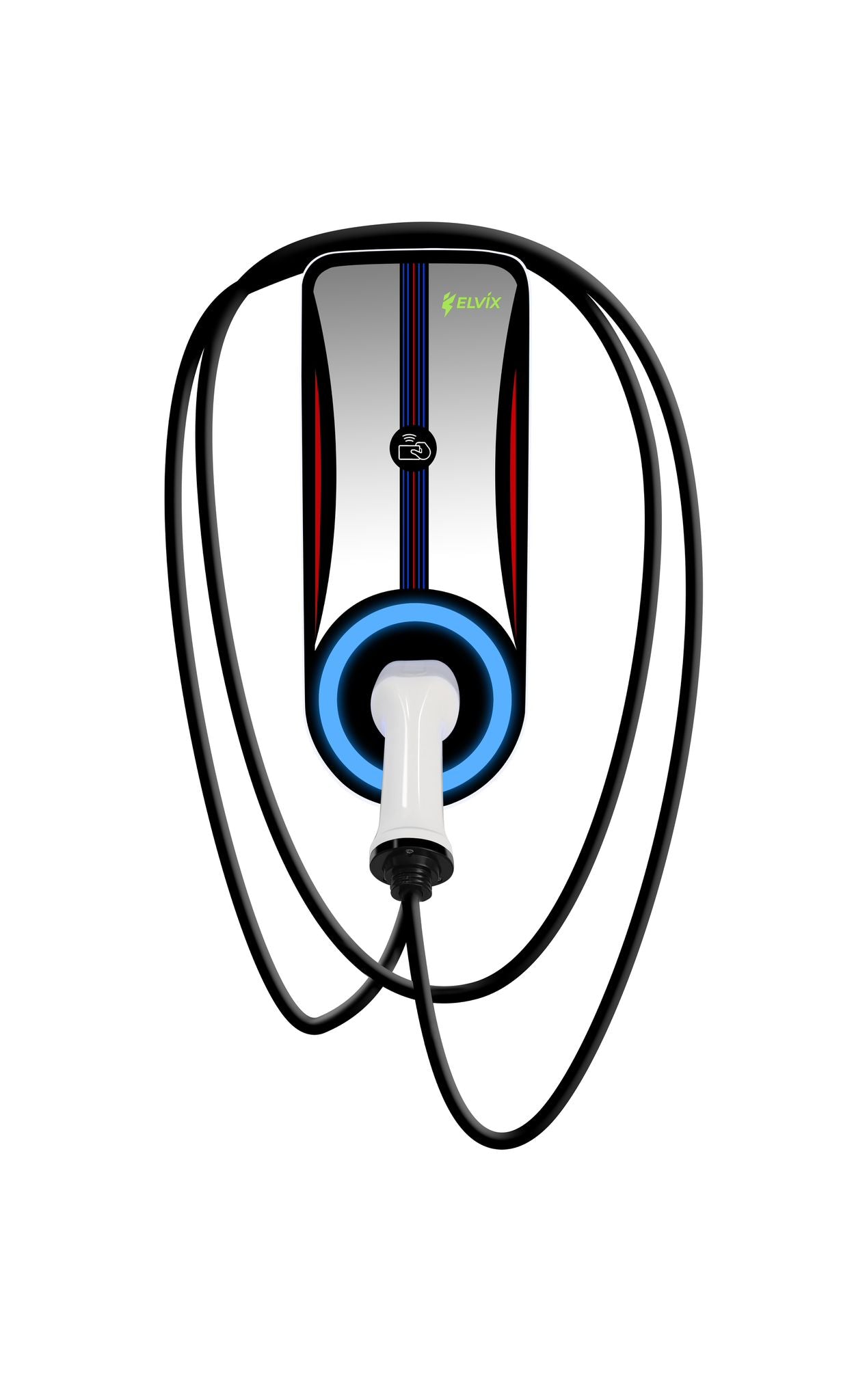

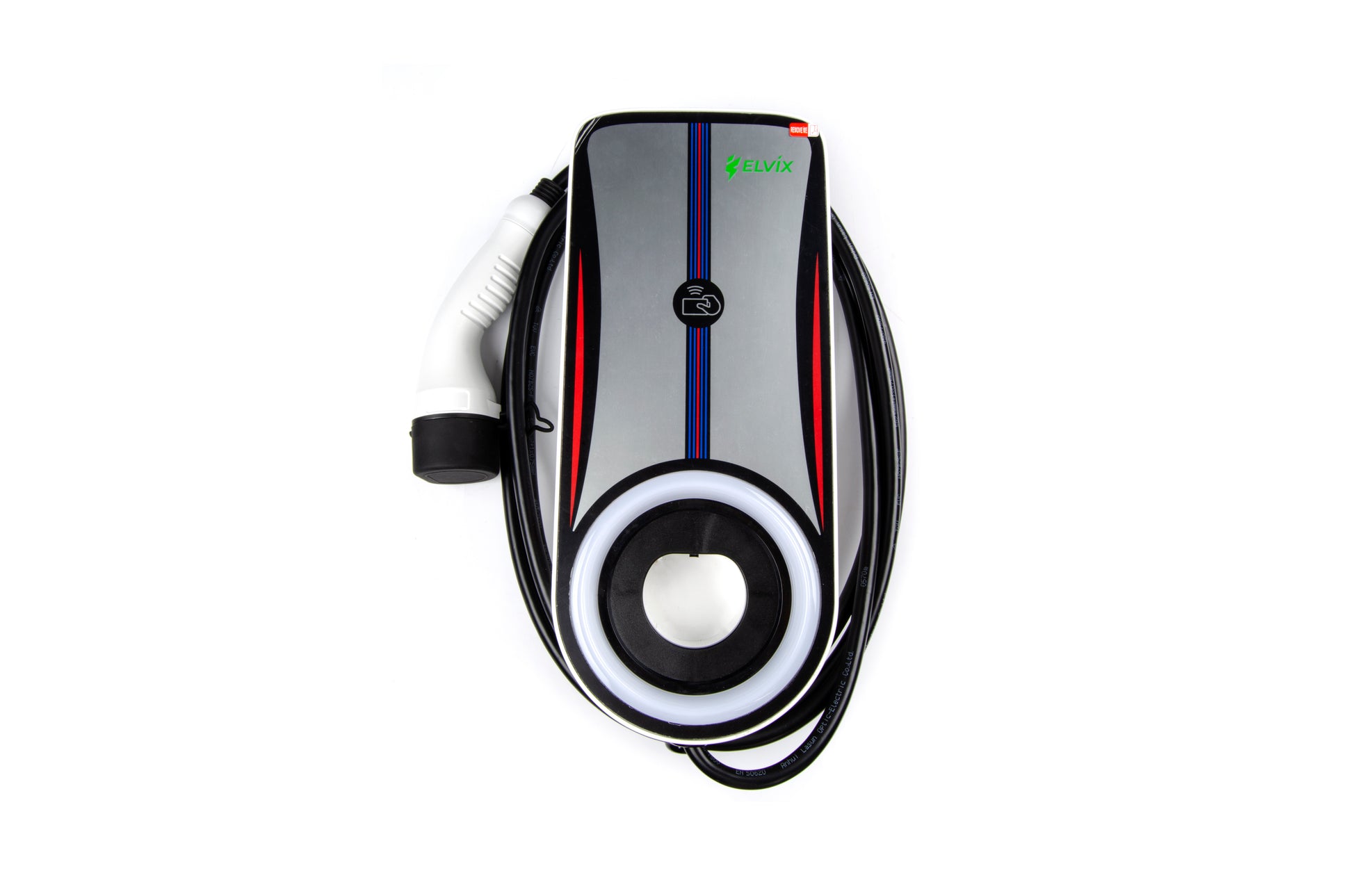

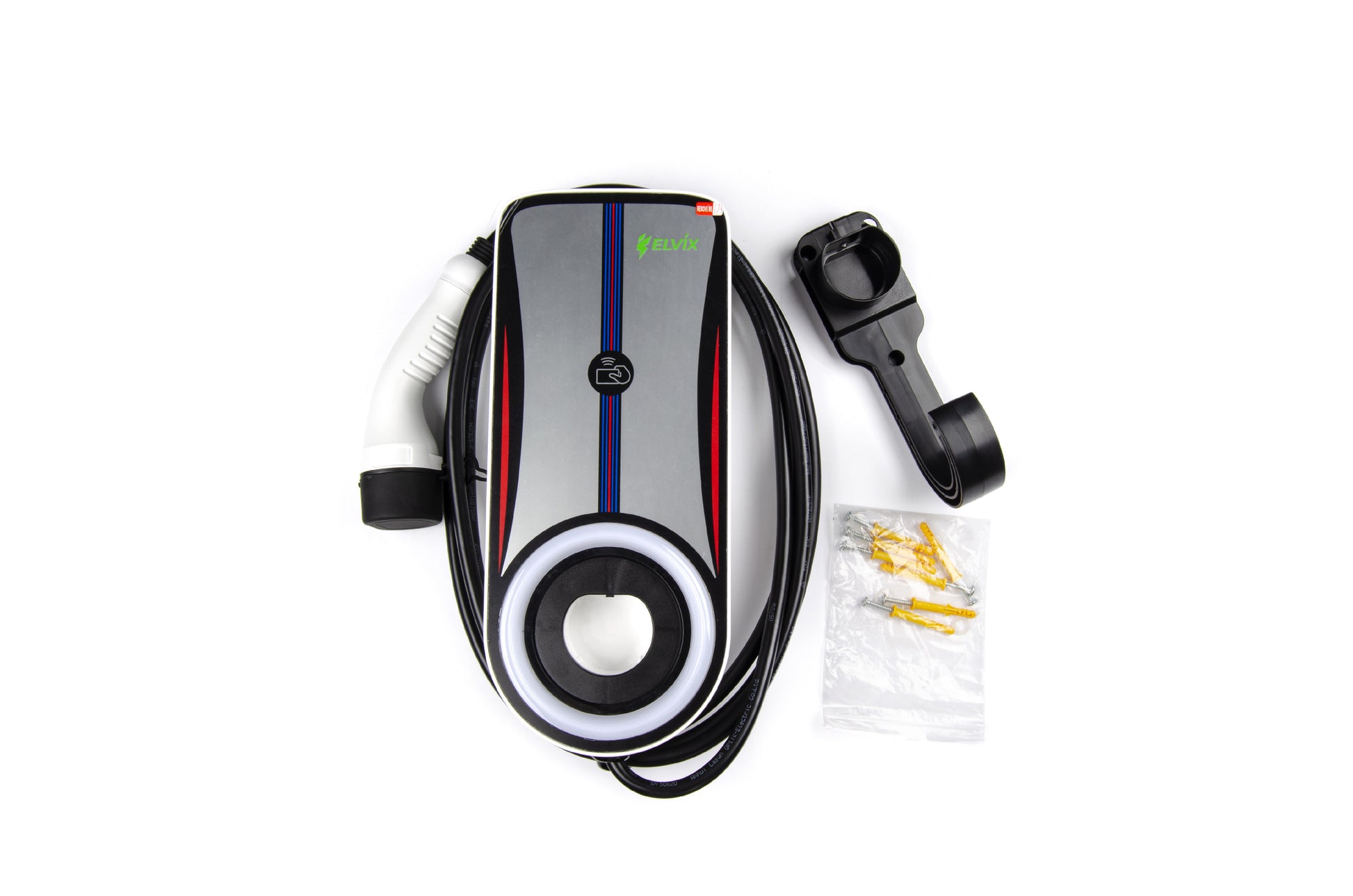

Wall charger Elvix WBAC 4957 T2 1 cable 11KW 5M RFID The Elvix WBAC 4957 T2 is a reliable and efficient AC wall charger with a maximum output of 11 kW. Three-phase power supply ensures a more stable and efficient supply of electricity. Thanks to this, it can deliver more power, which ensures faster charging of electric cars. The Elvix WBAC 4957 T2 charger is equipped with a plug-and-play control mode, making it user-friendly. With an integrated RFID reader for secure access, it is ideal for personal use. The charger has several safety features that ensure safe operation in various conditions. Specifications: Input voltage/current: three-phase 16A / AC 400V ±20% Output voltage/current: Three-phase 16A / AC 400V ±20% Maximum power: 11 kW Cable length: 5 m Charging interface type: IEC 62196-2, type 2 Efficiency: ≥96% Power factor: 0.99 (load: 50-100%) Degree of protection: IP54 Shell material: Material: PC+ABS, non-flammable and fire-resistant, UL-94 VO Control mode: Plug and play Payment method: Credit card Installation method: Wall mounting Cooling mode: Forced air cooling Safety functions: Over-voltage protection, under-voltage protection, overload protection, short-circuit protection, ground protection, overheating protection, emergency stop protection Communication protocol: OCPP1.6J Ambient temperature range: -30~50℃ Overall dimensions: H179.5 x W145.5 x D421 mm Weight: Approximately 7-8 kg Color: white The package contains: 1x charger 1x connector holder 2x cards 1x manual 1x set of screws
